171506-1 | AMP

Insulated ring cable lug, 0.26-1.04 mm², AWG 22 to 18, 4.34 mm, M4, red, 171506-1

Order No.: 71P3170
EAN: 4099891603038
MPN:
171506-1
Series: PIDG

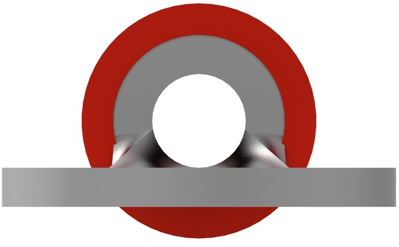

171506-1 AMP Cable Lugs Image 1

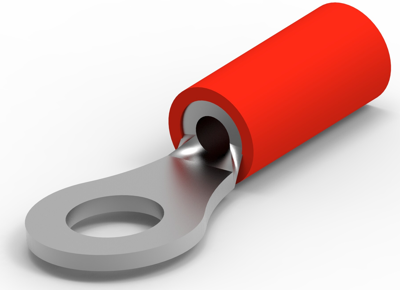

171506-1 AMP Cable Lugs Image 2

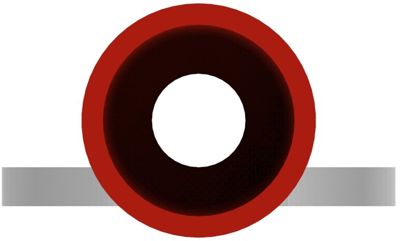

171506-1 AMP Cable Lugs Image 3

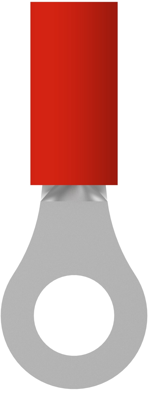

171506-1 AMP Cable Lugs Image 4

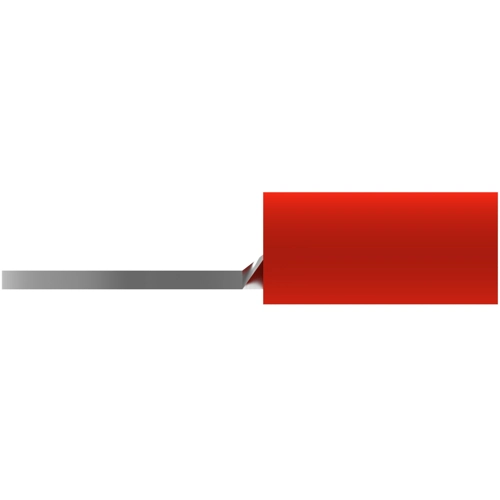

171506-1 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
1.4399 € *
Available in 5 Days: 2,250 pcs. - if ordered today
Total Price:
1.44 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4399 €
10 pcs.
1.3447 €
25 pcs.
1.2495 €
50 pcs.
1.1305 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring cable lug, 171506-1, AMP

Ring terminal, Ring tongue, 22-18 AWG Wire size, 0.26-1.04 mm² Wire size, Stud size #8/M4.

Technical specifications
Filter Property Value
Material Insulation vinyl
max. operating temperature 105 °C
AWG cross-section AWG 22 to 18
Colour red
Material copper, tin-plated
Isolated Yes
Thread size M4
Hole diameter 4.34 mm
shrinkable tubing Yes
Version ring cable lug
Cable cross-section 0.26-1.04 mm²
Logistics
Property Value
Customs tariff number 85369095
Country of origin US
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
