170647-2 | AMP

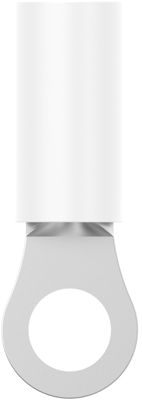

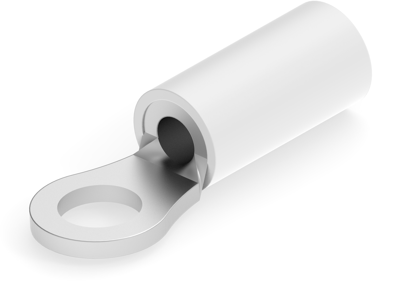

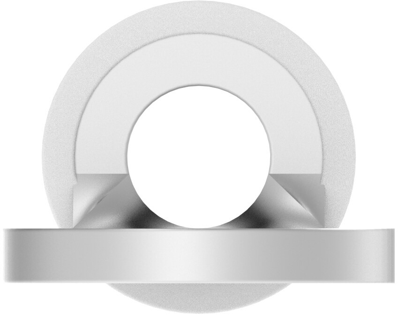

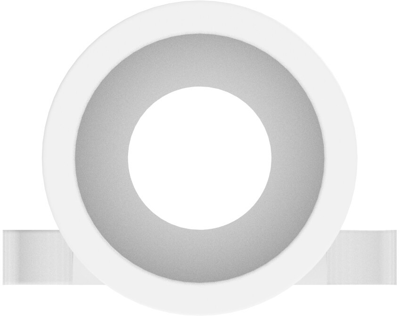

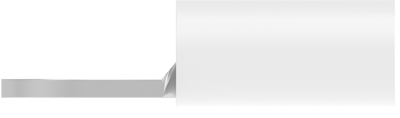

Insulated ring cable lug, 1.25-2.0 mm², AWG 16 to 14, 5.26 mm, M5, natural, 170647-2
Unit Price (€ / pc.)
0.3927 € *
Available in 5 Days: 8,350 pcs. - if ordered today
Total Price:
1.96 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3927 €
10 pcs.
0.3689 €
25 pcs.
0.3451 €
50 pcs.
0.3082 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 170647-2, AMP
Shape Description: RING-042, Ring & Spade Stud Size: M5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Inspection Slot: No, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 16 – 14 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 5.26 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: Yes, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Box
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| AWG cross-section | AWG 16 to 14 | |
| Version | ring cable lug | |
| Isolated | Yes | |
| Cable cross-section | 1.25-2.0 mm² | |
| Colour | natural | |
| Hole diameter | 5.26 mm | |
| Material Insulation | PVC | |
| max. operating temperature | 105 °C | |
| Thread size | M5 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
