170225-2 | AMP

Name: Uninsulated ring cable lug, 0.3-0.9 mm², AWG 22 to 18, 4.3 mm, M4
Brand: AMP
SKU: 71P3152
Price: 0.13 EUR
Availability: OutOfStock

Uninsulated ring cable lug, 0.3-0.9 mm², AWG 22 to 18, 4.3 mm, M4

Order No.: 71P3152

EAN: 4099891602987

MPN:

170225-2

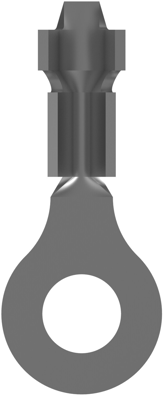

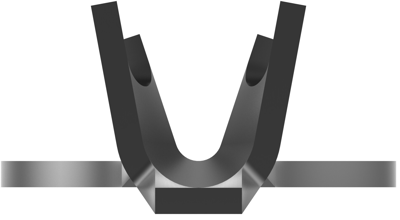

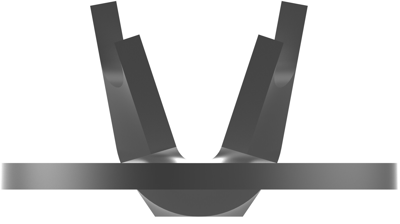

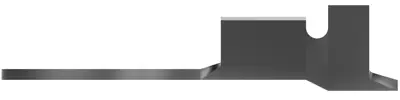

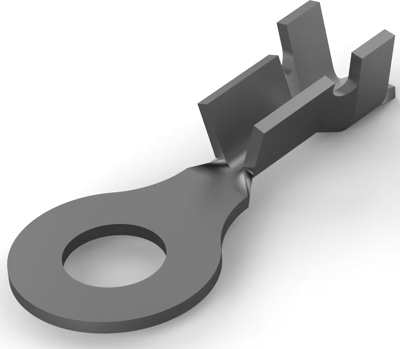

Image may differ

Key Specification:

Version ring cable lug

Cable cross-section 0.3-0.9 mm²

AWG cross-section AWG 22 to 18

Isolated No

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.1273 € *

Available: 0 pcs.

Available in 5 Days: 72,000 pcs.

Leadtime: 1 Week **

Add to Cart

Total Price:

0.13 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Ring cable lug, 170225-2, AMP

Ring terminal & Spade terminal, Ring tongue, 22-18 AWG Wire size, 0.3-0.9 mm² Wire size, 509-3260 CMA Wire size, Stud size M4/#8.

Technical specifications

	Version	ring cable lug
	AWG cross-section	AWG 22 to 18
	Thread size	M4
	Isolated	No
	Cable cross-section	0.3-0.9 mm²
	Hole diameter	4.3 mm
	Material	brass, tin-plated
	max. operating temperature	110 °C
	shrinkable tubing	No
