165412 | AMP

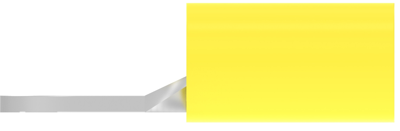

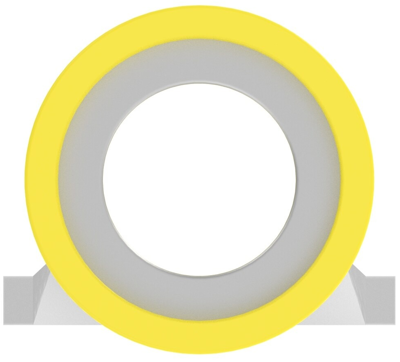

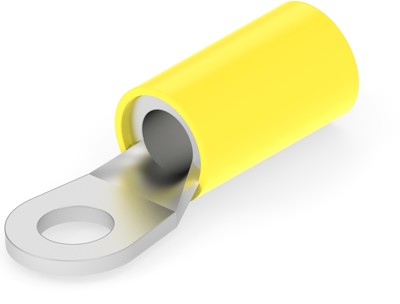

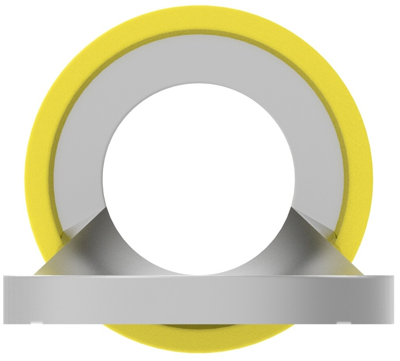

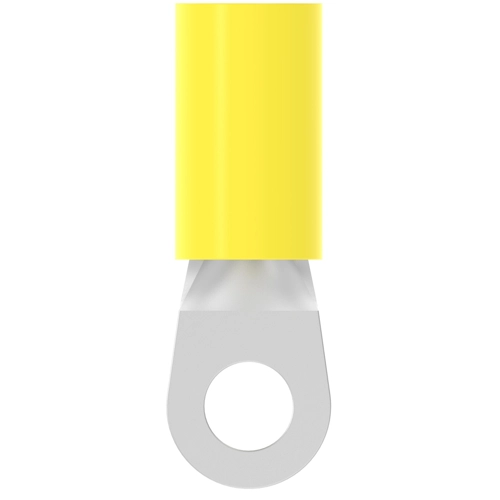

Insulated ring cable lug, 4.0-6.0 mm², AWG 11 to 10, 4.3 mm, M4, yellow, 165412
Order No.: 39P4107
EAN: 4099889598322
MPN:
165412
Unit Price (€ / pc.)
0.4522 € *
Standard delivery time from the manufacturer is: 36 Weeks
Cable lug, 165412, AMP
Shape Description: RING-049, Ring & Spade Stud Size: M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Insulation Sleeve Color: Yellow, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 11 – 10 AWG, Wire Size: 4 – 6 mm², Wire Size: 7894 – 11841 CMA, Stud Diameter: 4.3 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Box, Comment: Available On-Tape for Automatic Termination.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 11 to 10 | |
| Hole diameter | 4.3 mm | |
| Colour | yellow | |
| Thread size | M4 | |
| Material Insulation | PVC | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 4.0-6.0 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
