165303 | AMP

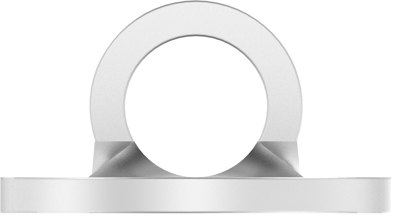

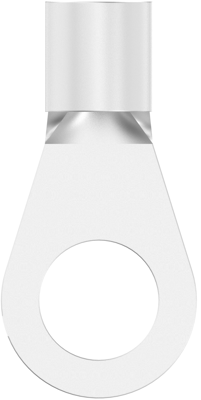

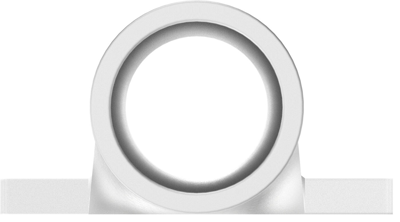

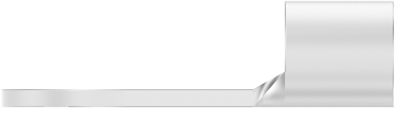

Uninsulated ring cable lug, 4.0-6.0 mm², AWG 12 to 10, 6.5 mm, M6, metal, 165303
Order No.: 39P8210
EAN: 4099889599893
MPN:
165303
Unit Price (€ / pc.)
0.6188 € *
Available: 0 pcs.
Leadtime: 24 Weeks **
Total Price:
0.62 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6188 €
10 pcs.
0.5474 €
50 pcs.
0.4879 €
100 pcs.
0.4284 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 165303, AMP
Shape Description: RING-101, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 12 – 10 AWG, Wire Size: 4 – 6 mm², Wire Size: 10383.311 – 16511.77 CMA, Stud Diameter: 6.5 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Package
Technical specifications
| Colour | metal | |
| Isolated | No | |
| AWG cross-section | AWG 12 to 10 | |
| Hole diameter | 6.5 mm | |
| Cable cross-section | 4.0-6.0 mm² | |
| Version | ring cable lug | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C | |
| Thread size | M6 |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85369095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
