165292 | AMP

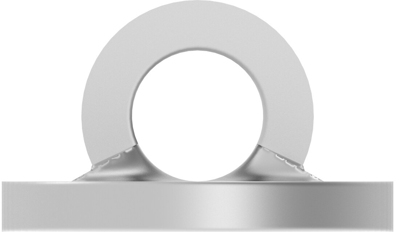

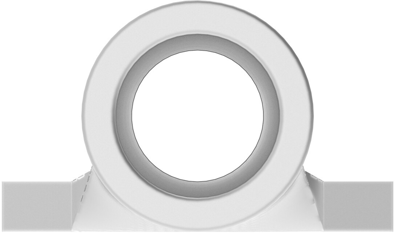

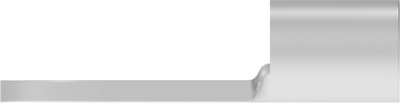

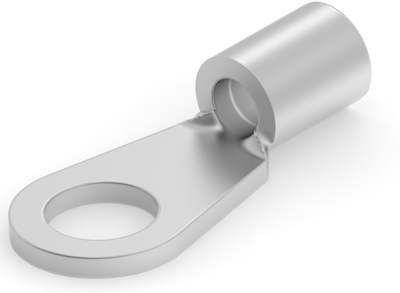

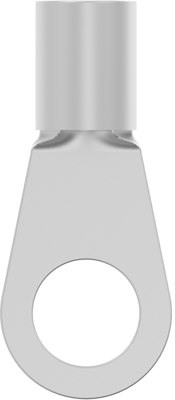

Uninsulated ring cable lug, 0.5-1.0 mm², AWG 20 to 16, 3.7 mm, M3.5, metal, 165292
Order No.: 39P8203
EAN: 4099889599848
MPN:
165292
Unit Price (€ / pc.)
0.5355 € *
Available in 5 Days: 8,929 pcs. - if ordered today
Total Price:
0.54 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5355 €
10 pcs.
0.4998 €
25 pcs.
0.4641 €
50 pcs.
0.4284 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 165292, AMP
Shape Description: RING-101, Ring & Spade Stud Size: M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 20 – 16 AWG, Wire Size: .5 – 1 mm², Wire Size: 1023.97 – 4108.69 CMA, Stud Diameter: 3.7 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Carton
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 to 16 | |
| Hole diameter | 3.7 mm | |
| Colour | metal | |
| Thread size | M3.5 | |
| max. operating temperature | 170 °C | |
| Cable cross-section | 0.5-1.0 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
