165168 | AMP

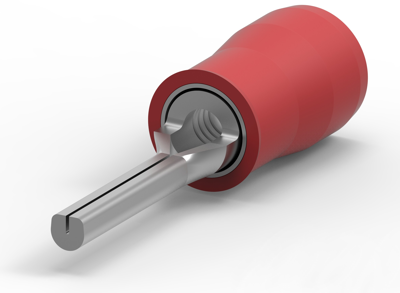

Insulated pin cable lug, 0.3-1.42 mm², AWG 22 to 16, 1.8 mm, red, 165168
Unit Price (€ / pc.)
0.6426 € *
Available in 5 Days: 33,284 pcs. - if ordered today
Total Price:
0.64 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6426 €
10 pcs.
0.5712 €
50 pcs.
0.5117 €
100 pcs.
0.4522 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 165168, AMP
Regular Wire, Closed Barrel, Straight, 493 – 3158 CMA
Technical Data
- Version: Pin cable lug
- AWG cross-section AWG 22 to 16
- Colour: red
- Material: Copper, tin-plated
- Cable cross-section 0.3 to 1.42 mm²
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin cable lug | |
| Cable cross-section | 0.3-1.42 mm² | |
| max. operating temperature | 105 °C | |
| Material Insulation | nylon | |
| Isolated | Yes | |
| Material | copper, tin-plated | |
| AWG cross-section | AWG 22 to 16 | |
| Pin diameter | 1.8 mm | |
| Colour | red |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
