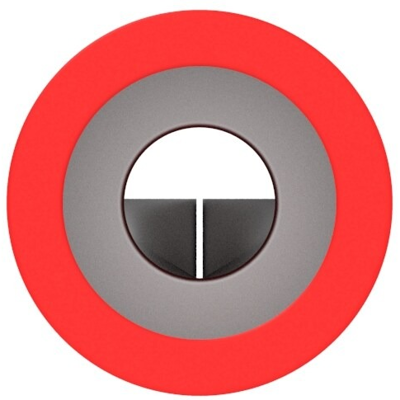

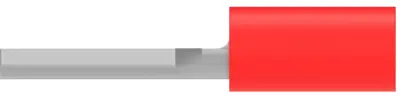

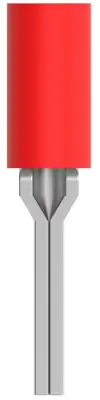

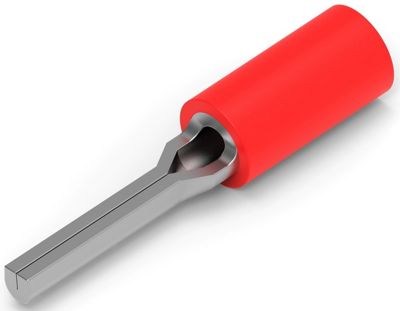

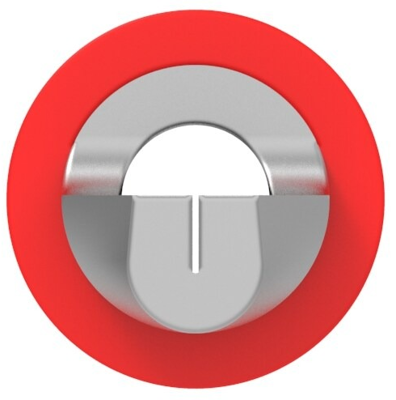

Wire end ferrule, 165167, AMP
Shape Description: WIRE PIN-001, Crimp Wire Pin, Tab & Ferrule Barrel Type: Closed Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Regular Wire, Sealable: No, Insulated: Yes, Insulation Sleeve Material: Vinyl, Crimp Wire Pin, Tab & Ferrule Plating Material: Copper,Tin, Terminal Length: 9.9 mm, Terminal & Splice Type: Pin, Crimp Wire Pin, Tab & Ferrule Terminal Type: Wire Pin, Crimp Wire Pin, Tab & Ferrule Pin Diameter: 1.78 mm, Pin Type: Formed, Bullet Terminal: Without, Wire Insulation Support: Without, DIN Wire Size: 0.5 – 1 mm², Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 3.71 mm, Accepts Wire Insulation Diameter Range: 2.67 – 3.36 mm, Wire Size: 22 – 16 AWG, Wire Size: 0.3 – 1.42 mm², Operating Temperature Range: 105 °C, Heavy Duty: No, Packaging Quantity: 1000, Crimp Wire Pin, Tab & Ferrule Packaging Method: Loose Piece, Barrel Color: Red
