165142 | AMP

Insulated pin cable lug, 0.25-1.6 mm², AWG 22 to 16, 1.8 mm, red, 165142

Order No.: 39P3859
EAN: 4099889596571
MPN:
165142
Series: PIDG

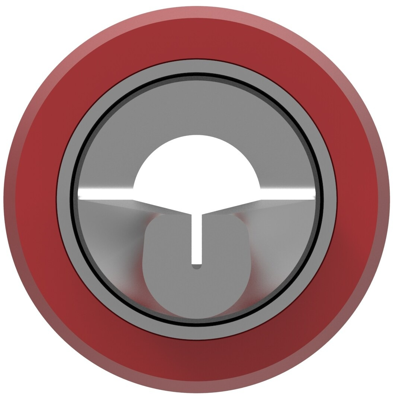

165142 AMP Cable Lugs Image 1

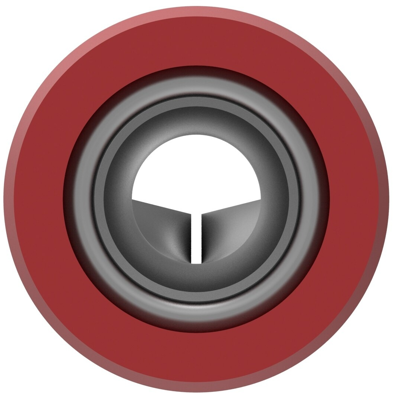

165142 AMP Cable Lugs Image 2

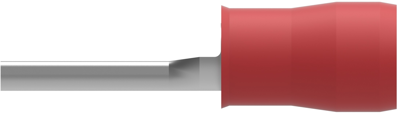

165142 AMP Cable Lugs Image 3

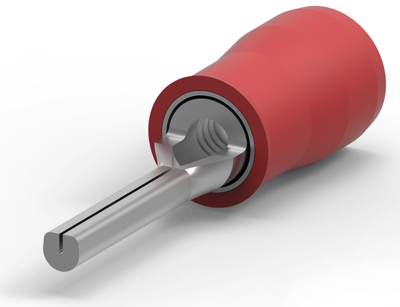

165142 AMP Cable Lugs Image 4

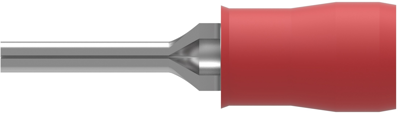

165142 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.4403 € *
Available in 5 Days: 32,504 pcs. - if ordered today
Total Price:
2.20 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4403 €
10 pcs.
0.4165 €
25 pcs.
0.3808 €
50 pcs.
0.3451 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable lug, 165142, AMP

Regular Wire, Closed Barrel, Straight, 493 – 3158 CMA

Technical Data

  • Version: Pin cable lug
  • AWG cross-section AWG 22 to 16
  • Colour: red
  • Material: Copper, tin-plated
  • Cable cross-section 0.25 to 1.6 mm²
Technical specifications
Filter Property Value
Material copper, tin-plated
AWG cross-section AWG 22 to 16
Version pin cable lug
Isolated Yes
Cable cross-section 0.25-1.6 mm²
Colour red
Material Insulation nylon
max. operating temperature 105 °C
Pin diameter 1.8 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
