165085 | AMP
Insulated pin cable lug, 2.6-6.6 mm², AWG 12 to 10, 2.59 mm, yellow, 165085
Unit Price (€ / pc.)
0.5950 € *
Available: 20 pcs.
Total Price:
2.97 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5950 €
10 pcs.
0.5593 €
25 pcs.
0.5117 €
50 pcs.
0.4641 €
*incl. VAT plus shipping costs
Subject to prior sale

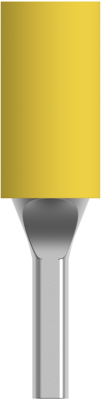

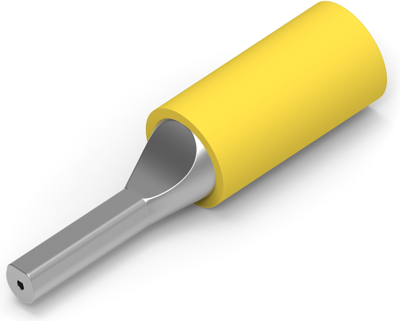

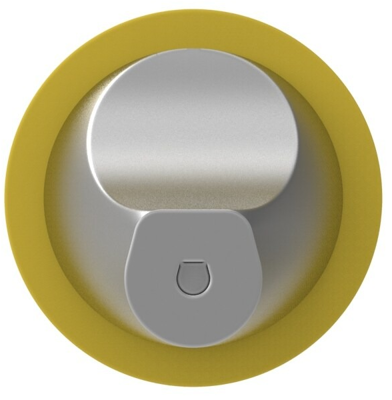

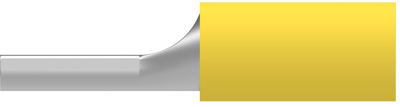

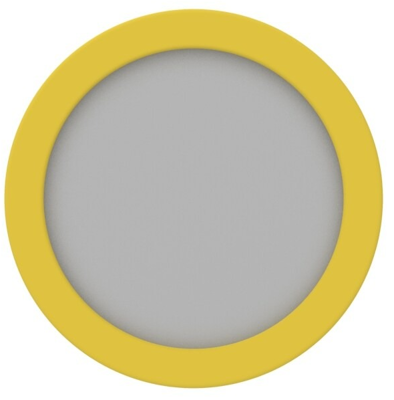

Cable lug, 165085, AMP
Discrete Wire, Closed Barrel, Straight, 5180 – 13100 CMA
Technical Data
- Version: Pin cable lug
- AWG cross-section AWG 12 to 10
- Colour: yellow
- Material: Copper, tin-plated
- Cable cross-section 2.6 to 6.6 mm²
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | Yes | |
| Colour | yellow | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 2.6-6.6 mm² | |
| Version | pin cable lug | |
| Material | copper, tin-plated | |
| Material Insulation | PVC | |
| AWG cross-section | AWG 12 to 10 | |
| Pin diameter | 2.59 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
