165034 | AMP

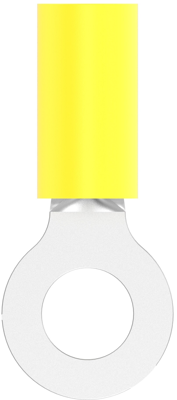

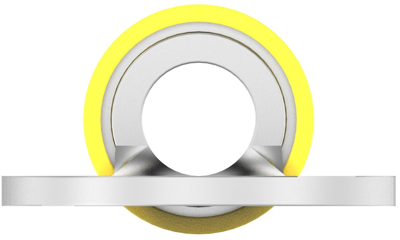

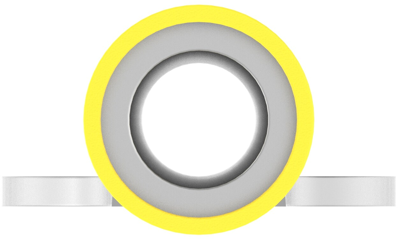

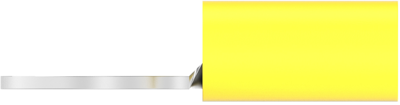

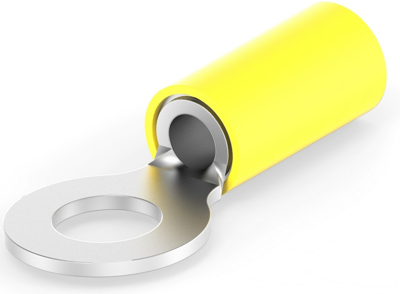

Insulated ring cable lug, 2.7-6.6 mm², AWG 12 to 10, 6.7 mm, M6, yellow, 165034
Unit Price (€ / pc.)
0.3094 € *
Available: 250 pcs.
Available in 5 Days: 1,511 pcs. - if ordered today
Total Price:
1.55 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3094 €
10 pcs.
0.2856 €
50 pcs.
0.2618 €
100 pcs.
0.2499 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 165034, AMP
Regular Wire, Closed Barrel, Straight, 300 V, M6, 5180 – 13100 CMA
Technical Data
- Version: Ring cable lug
- AWG cross-section AWG 12 to 10
- Colour: yellow
- Material: Copper, tin-plated
- Cable cross-section 2.7 to 6.6 mm²
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| Thread size | M6 | |
| AWG cross-section | AWG 12 to 10 | |
| max. operating temperature | 105 °C | |
| Isolated | Yes | |
| Hole diameter | 6.7 mm | |
| Material Insulation | nylon | |
| Colour | yellow | |
| Version | ring cable lug | |
| Cable cross-section | 2.7-6.6 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
