160296 | AMP

Insulated ring cable lug, 3.0-6.0 mm², AWG 12 to 10, 8.3 mm, M8, yellow, 160296

Order No.: 39P4117
EAN: 4099889598421
MPN:
160296
Series: PLASTI-GRIP

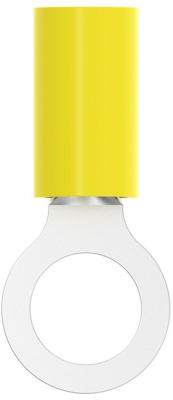

160296 AMP Cable Lugs Image 1

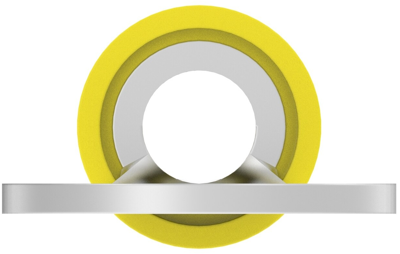

160296 AMP Cable Lugs Image 2

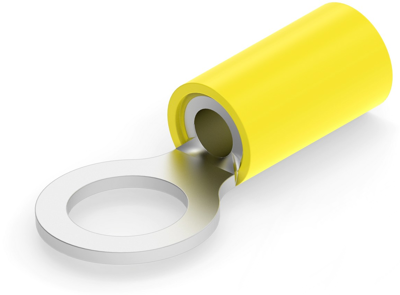

160296 AMP Cable Lugs Image 3

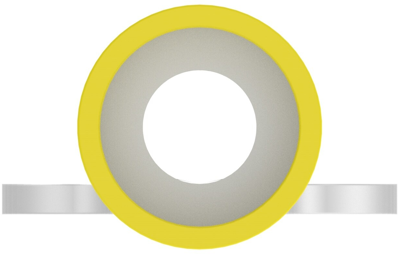

160296 AMP Cable Lugs Image 4

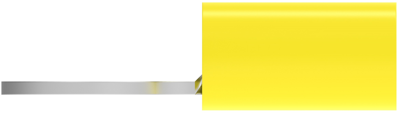

160296 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.6069 € *
Available: 2,320 pcs.
Available in 5 Days: 4,000 pcs. - if ordered today
Total Price:
0.61 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6069 €
10 pcs.
0.5593 €
25 pcs.
0.5236 €
50 pcs.
0.4760 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable lug, 160296, AMP

Regular Wire, Closed Barrel, Straight, 600 V, 5/16,M8, 5180 – 13100 CMA

Technical Data

  • Version: Ring cable lug
  • AWG cross-section AWG 12 to 10
  • Colour: yellow
  • Material: Copper, tin-plated
  • Cable cross-section 3.0 to 6 mm²
Technical specifications
Filter Property Value
Material Insulation PVC
Material copper, tin-plated
max. operating temperature 105 °C
Version ring cable lug
Hole diameter 8.3 mm
Thread size M8
Isolated Yes
AWG cross-section AWG 12 to 10
Colour yellow
Cable cross-section 3.0-6.0 mm²
Logistics
Property Value
Country of origin PT
Customs tariff number 85369095
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
