160181-2 | AMP

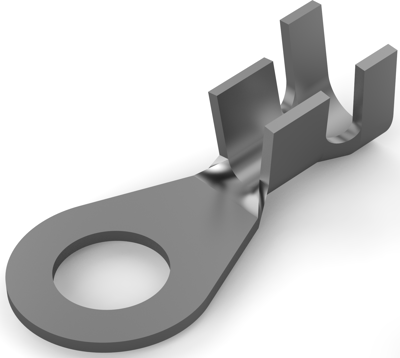

Uninsulated ring cable lug, 3.1-5.3 mm², AWG 12 to 10, 6.6 mm, M6, metal, 160181-2
Order No.: 35P2473
EAN: 4099889590333
MPN:
160181-2
Unit Price (€ / pc.)
0.4641 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
2.32 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4641 €
10 pcs.
0.4284 €
25 pcs.
0.3927 €
50 pcs.
0.3570 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring cable lug, 160181-2, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 0.185 g, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 12 – 10 AWG, Wire Size: 3.1 – 5.3 mm², Wire Size: 6529 – 10382 CMA, Stud Diameter: 6.6 mm, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Strip/Reel, Comment: Splice Free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| Colour | metal | |
| Hole diameter | 6.6 mm | |
| max. operating temperature | 110 °C | |
| Cable cross-section | 3.1-5.3 mm² | |
| Version | ring cable lug | |
| Material | brass, tin-plated | |
| AWG cross-section | AWG 12 to 10 | |
| Thread size | M6 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
