160129 | AMP
Uninsulated ring cable lug, 98.3-117 mm², AWG 4, 10 mm, M10, metal, 160129
Order No.: 39P8223
EAN: 4099889600025
MPN:
160129
Unit Price (€ / pc.)
15.7675 € *
Available in 5 Days: 540 pcs. - if ordered today
Total Price:
15.77 € *
Price list
Quantity
Price per unit*
1 pcs.
15.7675 €
10 pcs.
14.6370 €
25 pcs.
13.6612 €
50 pcs.
12.4236 €
*incl. VAT plus shipping costs
Subject to prior sale

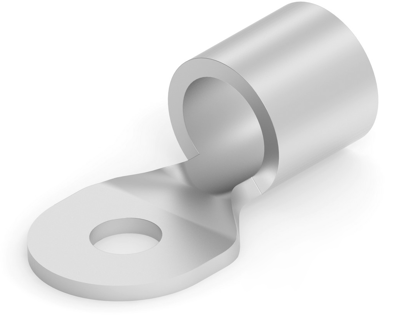

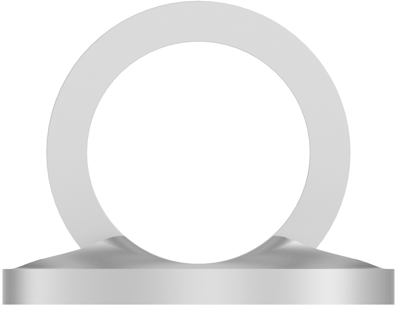

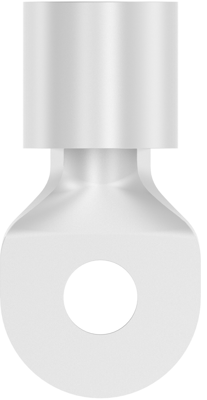

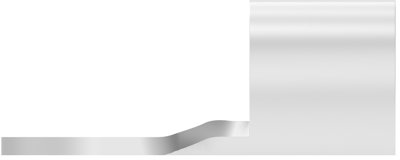

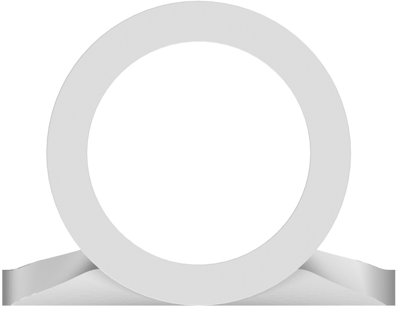

Ring cable lug, 160129, AMP
Shape Description: RING-080, Ring & Spade Stud Size: M10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 45.755 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 0000 AWG, Wire Size: 98.3 – 117 mm², Wire Size: 190000 – 231000 CMA, Stud Diameter: 10 mm,10.5 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 25, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| max. operating temperature | 170 °C | |
| Colour | metal | |
| Cable cross-section | 98.3-117 mm² | |
| AWG cross-section | AWG 4 | |
| Material | copper, tin-plated | |
| Hole diameter | 10 mm | |
| Isolated | No | |
| Thread size | M10 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | AT |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
