160101-9 | AMP

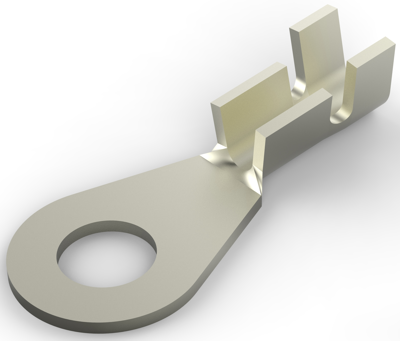

Uninsulated ring cable lug, 0.5-1.5 mm², AWG 20 to 16, 4.3 mm, metal, 160101-9
Order No.: 35P2430
EAN: 4099889590074
MPN:
160101-9
Unit Price (€ / pc.)
0.2630 € *
Standard delivery time from the manufacturer is: 22 Weeks
Ring tongue terminal, 160101-9, AMP
Ring tongue terminal, Receptacle style: straight, Wire size: 0.5 - 1.5 mm², Barrel type: open, Wire size: 20 - 16 AWG, Stud size: 8, M4, Stud diameter: 4.3 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| Hole diameter | 4.3 mm | |
| max. operating temperature | 250 °C | |
| Isolated | No | |
| Cable cross-section | 0.5-1.5 mm² | |
| Colour | metal | |
| Material | steel, nickel-plated | |
| AWG cross-section | AWG 20 to 16 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
