160013 | AMP

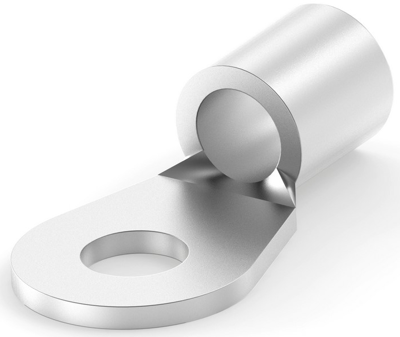

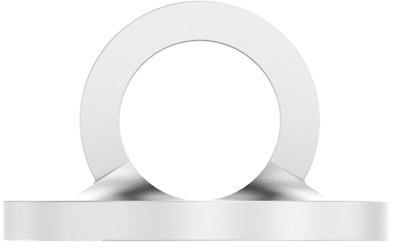

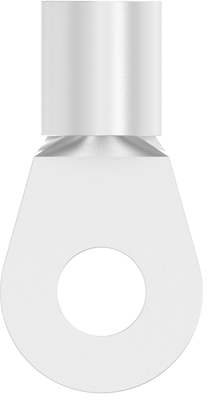

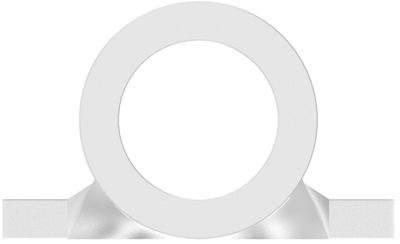

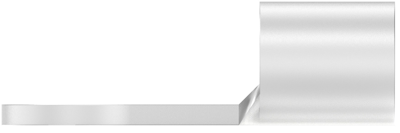

Uninsulated ring cable lug, 6.64-10.5 mm², AWG 8, 5.2 mm, M5, metal, 160013
Order No.: 39P8577
EAN: 4099889602142
MPN:
160013
Unit Price (€ / pc.)
2.0111 € *
Available in 5 Days: 3,170 pcs. - if ordered today
Total Price:
2.01 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0111 €
10 pcs.
1.8683 €
25 pcs.
1.7493 €
50 pcs.
1.5827 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 160013, AMP
Shape Description: RING-080, Ring & Spade Stud Size: M5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 3.32 g, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 8 AWG, Wire Size: 6.64 – 10.5 mm², Wire Size: 13100 – 20800 CMA, Stud Diameter: 5.2 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, UL Listed: Yes, Packaging Quantity: 500, Ring & Spade Packaging Method: Package, Comment: Yes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 8 | |
| Hole diameter | 5.2 mm | |
| Colour | metal | |
| Thread size | M5 | |
| max. operating temperature | 170 °C | |
| Cable cross-section | 6.64-10.5 mm² | |
| Material | tin | |
| Version | ring cable lug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | NL |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
