160003 | AMP

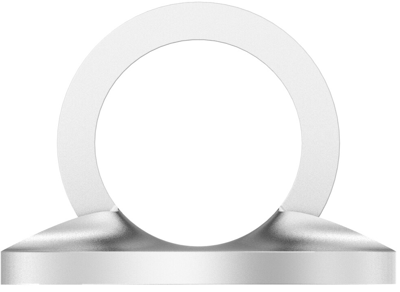

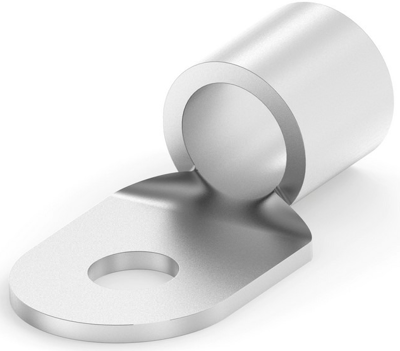

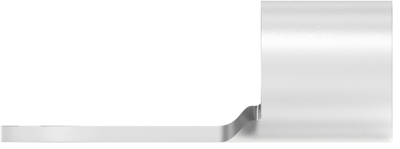

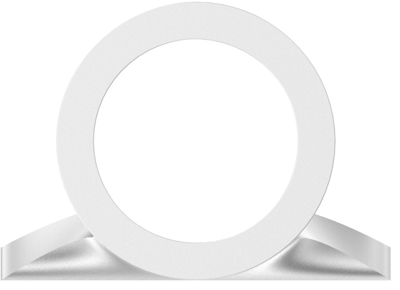

Uninsulated ring cable lug, 76.3-97 mm², AWG 6, 10 mm, M10, metal, 160003
Order No.: 39P8222
EAN: 4099889600018
MPN:
160003
Unit Price (€ / pc.)
22.3839 € *
Available in 5 Days: 94 pcs. - if ordered today
Total Price:
22.38 € *
Price list
Quantity
Price per unit*
1 pcs.
22.3839 €
10 pcs.
20.7774 €
25 pcs.
19.3970 €
50 pcs.
17.6358 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 160003, AMP
Shape Description: RING-080, Ring & Spade Stud Size: M10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 38.988 g, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 000 AWG, Wire Size: 76.3 – 97 mm², Wire Size: 150500 – 190000 CMA, Stud Diameter: 10 mm,10.5 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| max. operating temperature | 170 °C | |
| Colour | metal | |
| Cable cross-section | 76.3-97 mm² | |
| AWG cross-section | AWG 6 | |
| Material | tin | |
| Hole diameter | 10 mm | |
| Isolated | No | |
| Thread size | M10 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
