152881 | AMP

Insulated 27400203, 0.8-1.65 mm², AWG 18 to 16, 5 mm, M5, orange, 152881

Order No.: 39P3432
MPN:
152881
18-16 PIDG RT NO 10STUD ORANGE
Series: PIDG

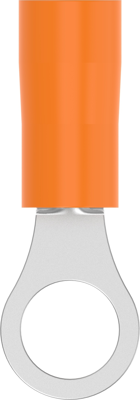

152881 AMP Cable Lugs Image 1

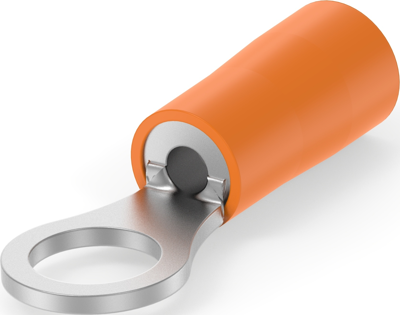

152881 AMP Cable Lugs Image 2

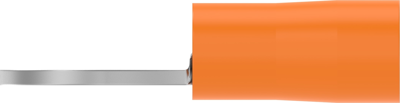

152881 AMP Cable Lugs Image 3

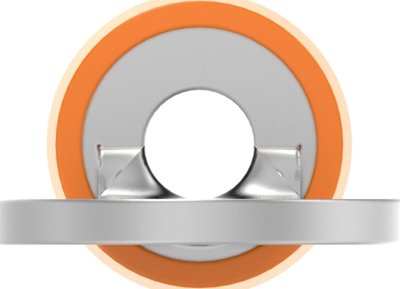

152881 AMP Cable Lugs Image 4
152881 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
3.0226 € *
Available in 5 Days: 14,566 pcs. - if ordered today
Total Price:
3.02 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0226 €
10 pcs.
2.7965 €
50 pcs.
2.6061 €
100 pcs.
2.4395 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring cable lug, 152881, AMP

Closed Ring Tongue Terminal, 18 - 16 AWG, M5 Stud, 5 mm Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated.

Technical specifications
Filter Property Value
Material Insulation nylon
Material copper
max. operating temperature 105 °C
Version ring cable lug
Hole diameter 5 mm
Thread size M5
Isolated Yes
AWG cross-section AWG 18 to 16
Colour orange
Cable cross-section 0.8-1.65 mm²
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
