152873 | AMP

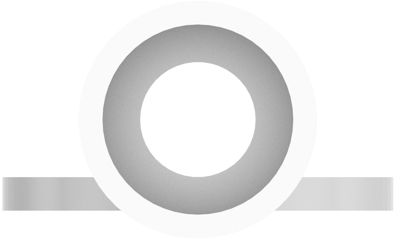

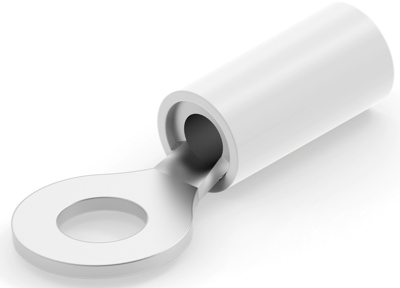

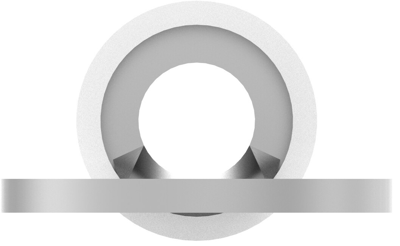

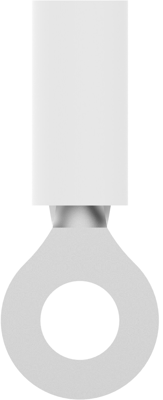

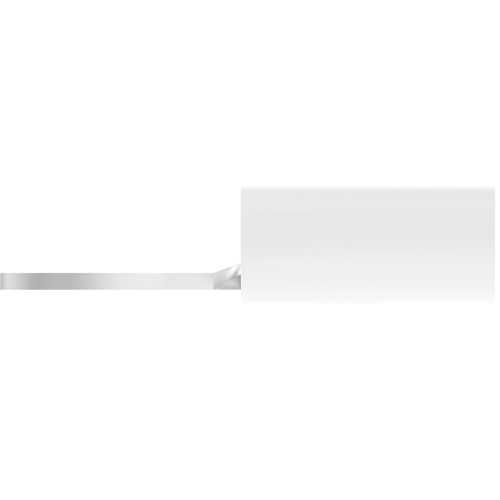

Insulated ring cable lug, 1.65-3.45 mm², AWG 14 to 12, 4.3 mm, M4, white, 152873
Unit Price (€ / pc.)
1.2971 € *
Standard delivery time from the manufacturer is: 71 Weeks
Ring cable lug, 152873, AMP
Shape Description: RING-041, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Stripe Color: White, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 14 – 12 AWG, Wire Size: 1.65 – 3.45 mm², Wire Size: 3260 – 6800 CMA, Stud Diameter: 4.3 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | Yes | |
| Colour | white | |
| Hole diameter | 4.3 mm | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 1.65-3.45 mm² | |
| Version | ring cable lug | |
| Material | tin | |
| Material Insulation | PA | |
| AWG cross-section | AWG 14 to 12 | |
| Thread size | M4 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
