152872 | AMP

Insulated ring cable lug, 1.65-3.45 mm², AWG 14 to 12, 5 mm, M5, white, 152872

Order No.: 39P3334
EAN: 4099889592450
MPN:
152872
Series: PIDG

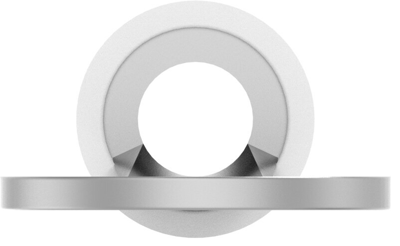

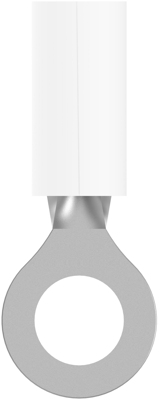

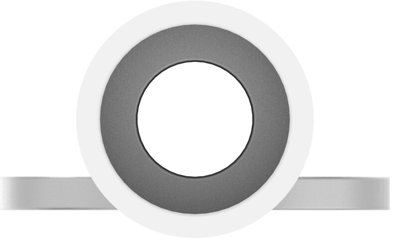

152872 AMP Cable Lugs Image 1
152872 AMP Cable Lugs Image 2
152872 AMP Cable Lugs Image 3
152872 AMP Cable Lugs Image 4
152872 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
2.2491 € *
Standard delivery time from the manufacturer is: 50 Weeks
Total Price:
2.25 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2491 €
10 pcs.
2.0468 €
50 pcs.
1.8445 €
100 pcs.
1.6541 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring cable lug, 152872, AMP

Shape Description: RING-041, Ring & Spade Stud Size: M5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Stripe Color: White, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 14 – 12 AWG, Wire Size: 1.65 – 3.45 mm², Wire Size: 3260 – 6800 CMA, Stud Diameter: 5 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece

Technical specifications
Filter Property Value
Version ring cable lug
max. operating temperature 105 °C
Colour white
Cable cross-section 1.65-3.45 mm²
AWG cross-section AWG 14 to 12
Material tin
Hole diameter 5 mm
Isolated Yes
Material Insulation PA
Thread size M5
Logistics
Property Value
Country of origin CN
Customs tariff number 85369095
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
