151730 | AMP

Insulated ring cable lug, 0.3-1.31 mm², AWG 22 to 16, 5 mm, M5, red, 151730

Order No.: 39P3355
EAN: 4099889592573
MPN:
151730
Series: PIDG

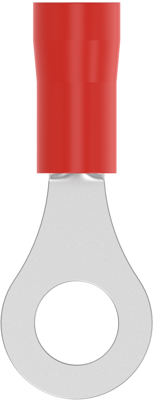

151730 AMP Cable Lugs Image 1

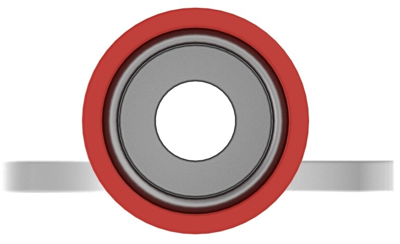

151730 AMP Cable Lugs Image 2

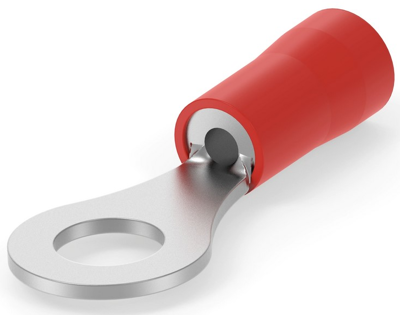

151730 AMP Cable Lugs Image 3

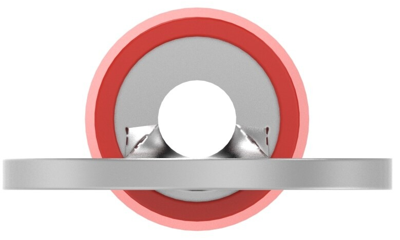

151730 AMP Cable Lugs Image 4

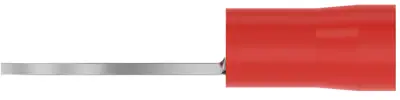

151730 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.8092 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
0.81 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8092 €
10 pcs.
0.7259 €
50 pcs.
0.6545 €
100 pcs.
0.5831 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring cable lug, 151730, AMP

Shape Description: RING-042, Ring & Spade Stud Size: M5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Stripe Color: Red, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: 0.3 – 1.31 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 5.21 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece, Comment: Marking: Commercial 22-16- Military 22-18 in accordance with MIL-T-7928.

Technical specifications
Filter Property Value
Hole diameter 5 mm
Thread size M5
max. operating temperature 105 °C
Isolated Yes
Version ring cable lug
Material tin
Colour red
Cable cross-section 0.3-1.31 mm²
AWG cross-section AWG 22 to 16
Material Insulation PA
Logistics
Property Value
Country of origin TW
Customs tariff number 85369095
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
