151439 | AMP

Insulated ring cable lug, 0.2-0.3 mm², AWG 24 to 22, 3.6 mm, M3.5, black, 151439

Order No.: 39P3368
EAN: 4099889592610
MPN:
151439
Series: PIDG

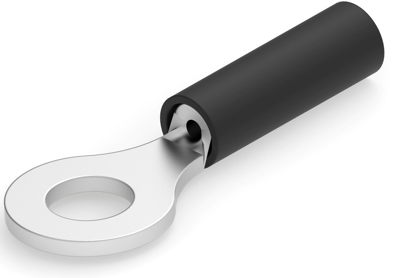

151439 AMP Cable Lugs Image 1

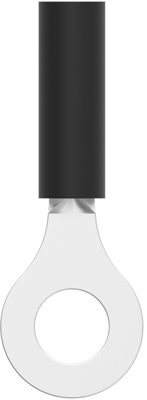

151439 AMP Cable Lugs Image 2
151439 AMP Cable Lugs Image 3
151439 AMP Cable Lugs Image 4
151439 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
2.5823 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
2.58 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5823 €
10 pcs.
2.3681 €
50 pcs.
2.1301 €
100 pcs.
1.9159 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring cable lug, 151439, AMP

Shape Description: RING-041, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Stripe Color: Black, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 24 – 22 AWG, Wire Size: 0.2 -0.3 mm², Wire Size: 509 – 810 CMA, Stud Diameter: 3.6 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Box

Technical specifications
Colour black
Isolated Yes
AWG cross-section AWG 24 to 22
Hole diameter 3.6 mm
Cable cross-section 0.2-0.3 mm²
Version ring cable lug
Material copper, tin-plated
max. operating temperature 105 °C
Material Insulation PA
Thread size M3.5
Logistics
Country of origin PL
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
