1377173-8 | AMP

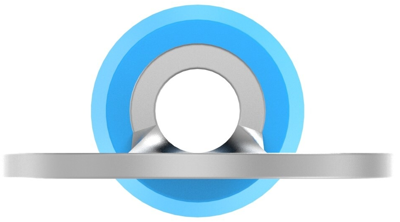

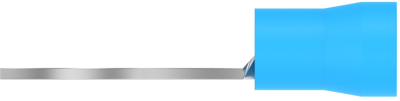

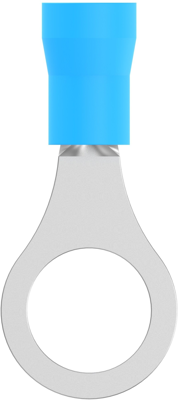

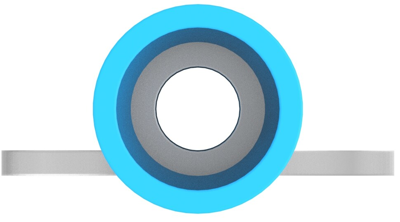

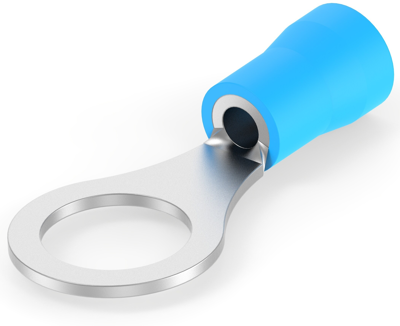

Insulated ring cable lug, 1.25-2.0 mm², AWG 16 to 14, 8.33 mm, M8, blue, 1377173-8
Order No.: 39P4128
EAN: 4099889598513
MPN:
1377173-8
Unit Price (€ / pc.)
1.428 € *
Available: 0 pcs.
Available in 5 Days: 3,000 pcs.
Leadtime: 74 Weeks **
Cable lug, 1377173-8, AMP
Shape Description: RING-043, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 600 V, Weight per Piece: 1.13 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 8.33 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 90 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Bag, Comment: Shipper quantity : 20 X QTY/Plastic box
Technical specifications
| Colour | blue | |
| Isolated | Yes | |
| AWG cross-section | AWG 16 to 14 | |
| Hole diameter | 8.33 mm | |
| Cable cross-section | 1.25-2.0 mm² | |
| Version | ring cable lug | |
| Material | copper, tin-plated | |
| max. operating temperature | 90 °C | |
| Material Insulation | vinyl | |
| Thread size | M8 |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85369095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
