1377172-8 | AMP

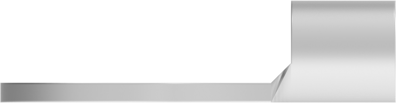

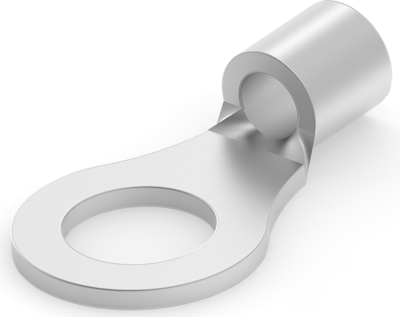

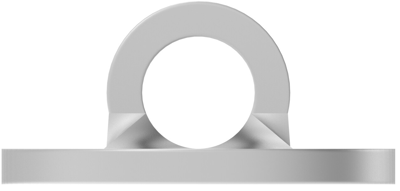

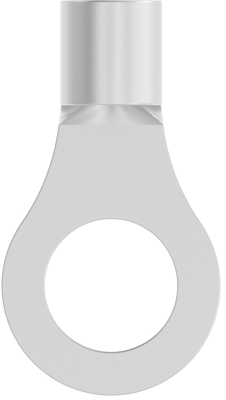

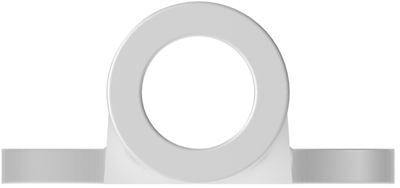

Uninsulated ring cable lug, 1.0-2.5 mm², AWG 17 to 13, 5.21 mm, M3, metal, 1377172-8
Order No.: 39P8557
EAN: 4099889601978
MPN:
1377172-8
Unit Price (€ / pc.)
0.7854 € *
Standard delivery time from the manufacturer is: 74 Weeks
Total Price:
0.79 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7854 €
10 pcs.
0.7140 €
50 pcs.
0.6426 €
100 pcs.
0.5831 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 1377172-8, AMP
Shape Description: RING-048, Ring & Spade Stud Size: #5,M3, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Weight per Piece: .941 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 17 – 13 AWG, Wire Size: 1 – 2.5 mm², Wire Size: 1974 – 4934 CMA, Stud Diameter: 5.21 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Small Pack
Technical specifications
| Colour | metal | |
| Isolated | No | |
| AWG cross-section | AWG 17 to 13 | |
| Hole diameter | 5.21 mm | |
| Cable cross-section | 1.0-2.5 mm² | |
| Version | ring cable lug | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C | |
| Thread size | M3 |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85369095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
