130552 | AMP

Uninsulated ring cable lug, 13-15 mm², AWG 6, 5.2 mm, M3, metal, 130552

Order No.: 39P8574
EAN: 4099889602111
MPN:
130552

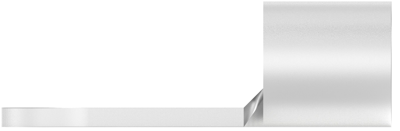

130552 AMP Cable Lugs Image 1

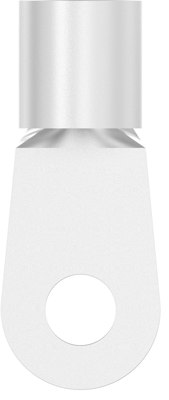

130552 AMP Cable Lugs Image 2

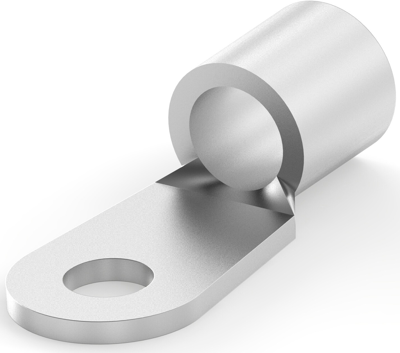

130552 AMP Cable Lugs Image 3

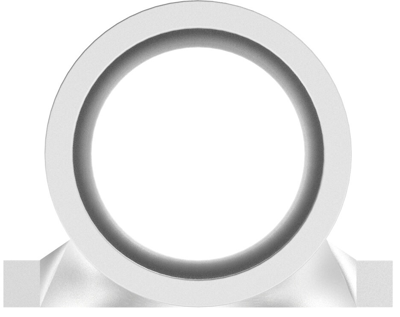

130552 AMP Cable Lugs Image 4
130552 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
2.5823 € *
Available in 5 Days: 15 pcs. - if ordered today
Total Price:
2.58 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5823 €
10 pcs.
2.3681 €
50 pcs.
2.1301 €
100 pcs.
1.9159 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable lug, 130552, AMP

Shape Description: RING-080, Ring & Spade Stud Size: #5,M3, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Inspection Slot: No, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 6 AWG, Wire Size: 13 – 15 mm², Wire Size: 20800 – 33100 CMA, Stud Diameter: 5.2 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Box

Technical specifications
Colour metal
Isolated No
AWG cross-section AWG 6
Hole diameter 5.2 mm
Cable cross-section 13-15 mm²
Version ring cable lug
Material tin
max. operating temperature 170 °C
Thread size M3
Logistics
Country of origin TW
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
