130527 | AMP

Insulated forked cable lug, 1.04-2.62 mm², AWG 16 to 14, 4.32 mm, M2.5, blue, 130527

Order No.: 39P3467
EAN: 4099889593471
MPN:
130527
Series: PIDG

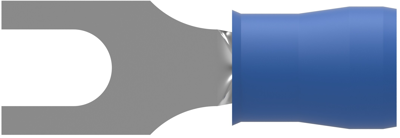

130527 AMP Cable Lugs Image 1

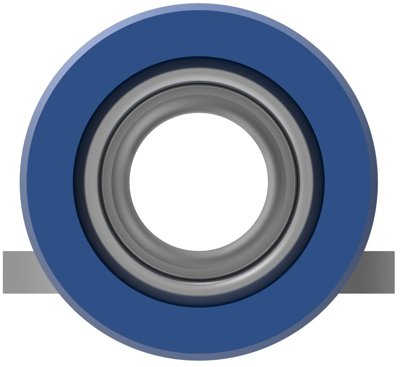

130527 AMP Cable Lugs Image 2

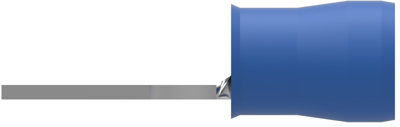

130527 AMP Cable Lugs Image 3

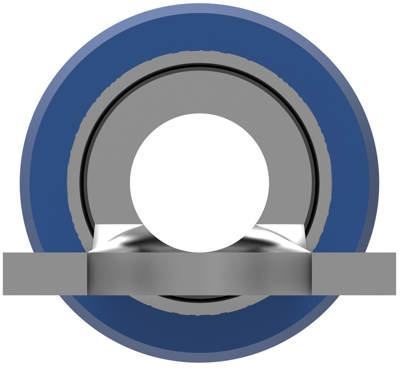

130527 AMP Cable Lugs Image 4

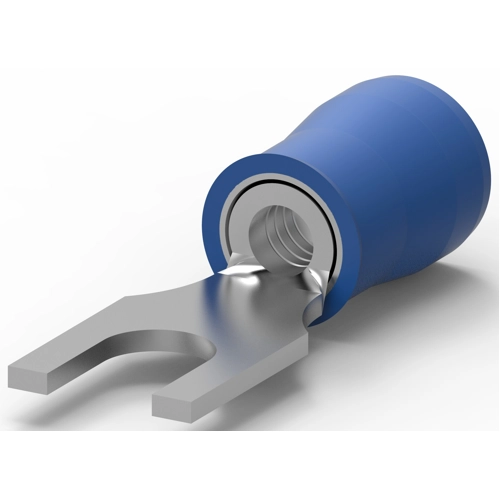

130527 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.2071 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
1,035.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.2071 €

Fork cable lug, 130527, AMP

Shape Description: SPADE-020, Ring & Spade Stud Size: M2.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Inspection Slot: No, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.04 – 2.62 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 3.02 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece, Comment: Available On-Tape for Automatic Termination.

Technical specifications
Colour blue
Isolated Yes
AWG cross-section AWG 16 to 14
Hole diameter 4.32 mm
Cable cross-section 1.04-2.62 mm²
Version forked cable lug
Material tin
max. operating temperature 105 °C
Material Insulation PA
Thread size M2.5
Logistics
Country of origin TW
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
