130519 | AMP
Uninsulated forked cable lug, 0.3-1.42 mm², AWG 22 to 16, 4.3 mm, M4, metal, 130519
Order No.: 39P8570
EAN: 4099889602081
MPN:
130519
Unit Price (€ / pc.)
0.4641 € *
Available in 5 Days: 10,675 pcs. - if ordered today
Total Price:
2.32 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4641 €
10 pcs.
0.4284 €
25 pcs.
0.3927 €
50 pcs.
0.3570 €
*incl. VAT plus shipping costs
Subject to prior sale

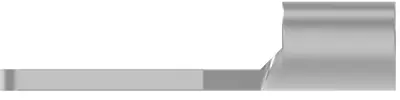

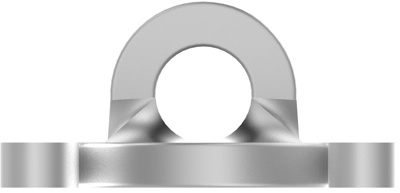

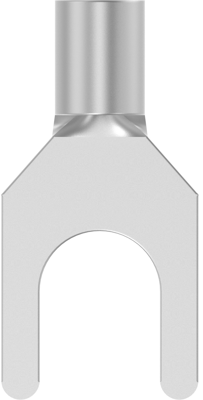

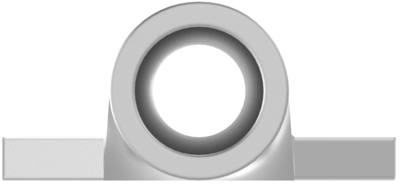

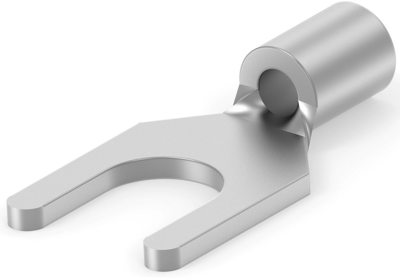

Fork cable lug, 130519, AMP
Shape Description: SPADE-047, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Inspection Slot: No, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 22 – 16 AWG, Wire Size: 0.3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 4.3 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Box
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | tin | |
| AWG cross-section | AWG 22 to 16 | |
| Version | forked cable lug | |
| Isolated | No | |
| Cable cross-section | 0.3-1.42 mm² | |
| Colour | metal | |
| Hole diameter | 4.3 mm | |
| max. operating temperature | 170 °C | |
| Thread size | M4 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
