130517 | AMP

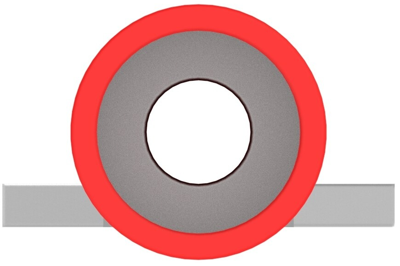

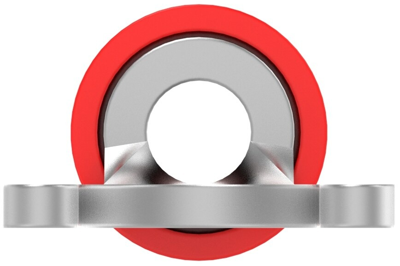

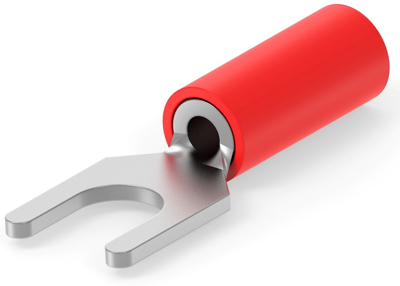

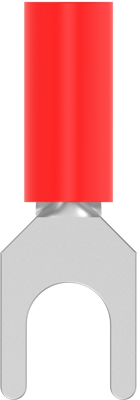

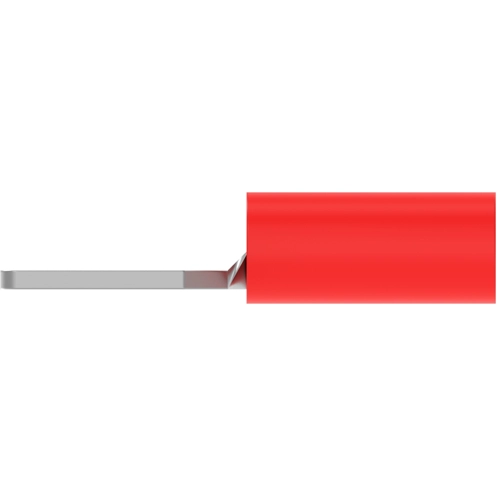

Insulated forked cable lug, 0.26-1.65 mm², AWG 22 to 16, 4.3 mm, M4, red, 130517
Unit Price (€ / pc.)
0.3332 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
0.33 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3332 €
10 pcs.
0.3082 €
25 pcs.
0.2880 €
50 pcs.
0.2618 €
*incl. VAT plus shipping costs
Subject to prior sale
Fork cable lug, 130517, AMP
Shape Description: SPADE-020, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Stripe Color: Red, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: 0.26 – 1.65 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 4.3 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece, Comment: Available On-Tape for Automatic Termination.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thread size | M4 | |
| max. operating temperature | 105 °C | |
| Material | tin | |
| Hole diameter | 4.3 mm | |
| Cable cross-section | 0.26-1.65 mm² | |
| Colour | red | |
| Isolated | Yes | |
| Version | forked cable lug | |
| AWG cross-section | AWG 22 to 16 | |
| Material Insulation | PA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
