130477 | AMP

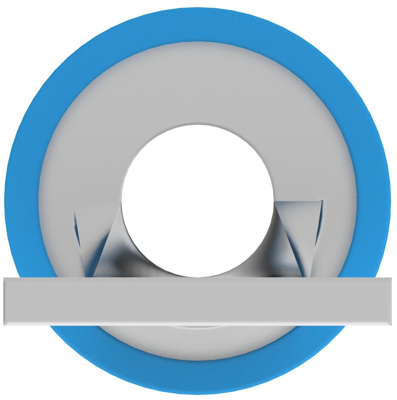

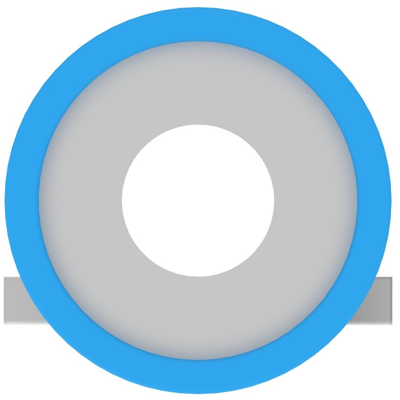

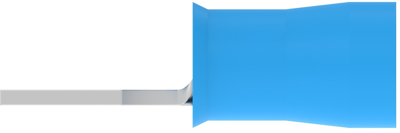

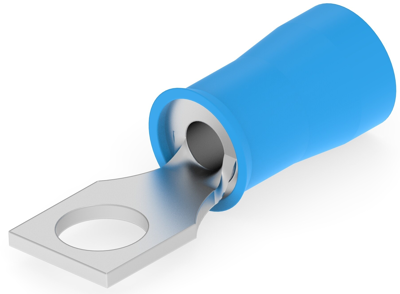

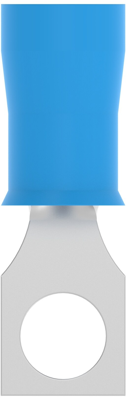

Insulated ring cable lug, 1.04-2.62 mm², AWG 16 to 14, 4 mm, M4, blue, 130477
Order No.: 39P3434
EAN: 4099889593198
MPN:
130477
Unit Price (€ / pc.)
0.2487 € *
Standard delivery time from the manufacturer is: 43 Weeks
Rings and Spades, 130477, AMP
Shape Description: RING-055, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Stripe Color: Blue, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Rectangular Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.04 – 2.62 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16 to 14 | |
| Hole diameter | 4 mm | |
| Colour | blue | |
| Thread size | M4 | |
| Material Insulation | PA | |
| max. operating temperature | 150 °C | |
| Cable cross-section | 1.04-2.62 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
