130230 | AMP

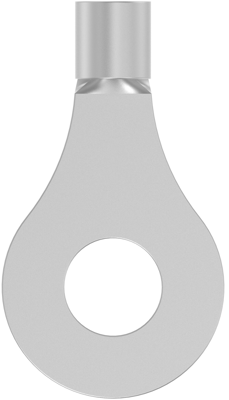

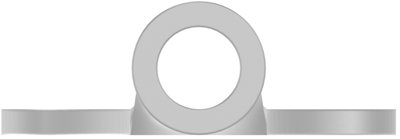

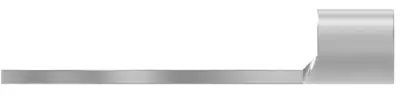

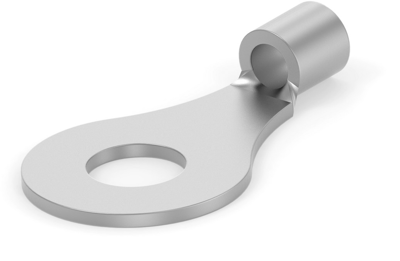

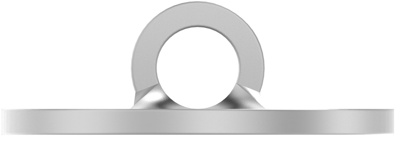

Uninsulated ring cable lug, 3.0-6.0 mm², AWG 12 to 10, 6.35 mm, M6, metal, 130230
Order No.: 39P8582
EAN: 4099889602197
MPN:
130230
Unit Price (€ / pc.)
0.4760 € *
Available in 5 Days: 2,250 pcs. - if ordered today
Cable lug, 130230, AMP
Shape Description: RING-048, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Inspection Slot: No, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 6.35 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Box
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| Version | ring cable lug | |
| max. operating temperature | 170 °C | |
| Colour | metal | |
| Hole diameter | 6.35 mm | |
| AWG cross-section | AWG 12 to 10 | |
| Thread size | M6 | |
| Material | tin | |
| Cable cross-section | 3.0-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85365003 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
