130207 | AMP

Insulated ring cable lug, 2.62-6.64 mm², AWG 12 to 10, 10 mm, M10, yellow, 130207

Order No.: 39P3446
EAN: 4099889593297
MPN:
130207
Series: PIDG

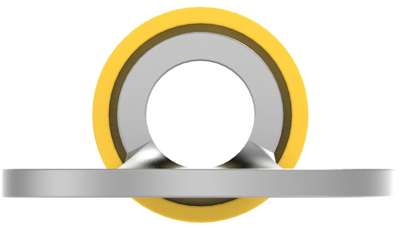

130207 AMP Cable Lugs Image 1

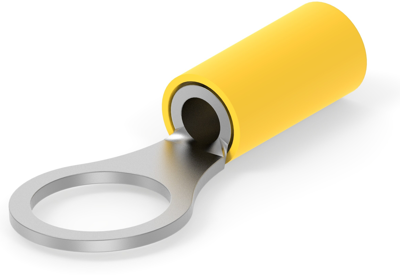

130207 AMP Cable Lugs Image 2

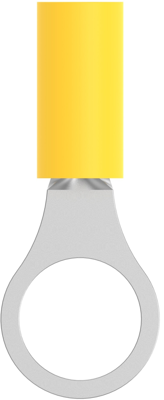

130207 AMP Cable Lugs Image 3

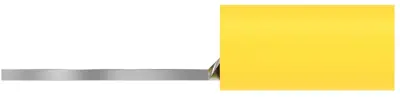

130207 AMP Cable Lugs Image 4

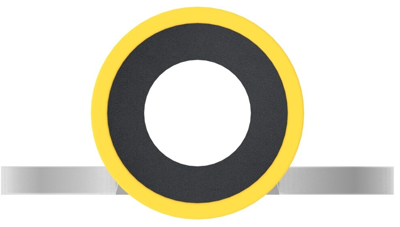

130207 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.9758 € *
Available in 5 Days: 14,787 pcs. - if ordered today
Total Price:
0.98 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9758 €
10 pcs.
0.8806 €
50 pcs.
0.7854 €
100 pcs.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring tongue terminal, 130207, AMP

Ring tongue terminal, Receptacle style: straight, Wire size: 2.62 - 6.64 mm², Barrel type: closed, Wire size: 12 - 10 AWG, Stud size: M10, Stud diameter: 10.3mm

Technical specifications
Filter Property Value
Version ring cable lug
Material copper, tin-plated
Isolated Yes
AWG cross-section AWG 12 to 10
Material Insulation PA
Colour yellow
max. operating temperature 105 °C
Cable cross-section 2.62-6.64 mm²
Hole diameter 10 mm
Thread size M10
Logistics
Property Value
Country of origin TW
Customs tariff number 85369095
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
