130205 | AMP

Insulated ring cable lug, 2.6-6.6 mm², AWG 12 to 10, 6 mm, M6, yellow, 130205

Order No.: 39P3445
EAN: 4099889593280
MPN:
130205
Series: PIDG

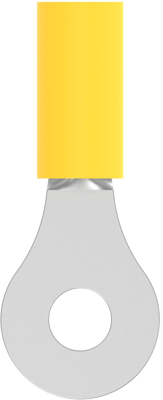

130205 AMP Cable Lugs Image 1

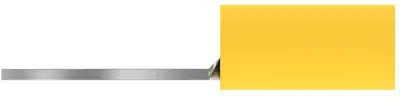

130205 AMP Cable Lugs Image 2

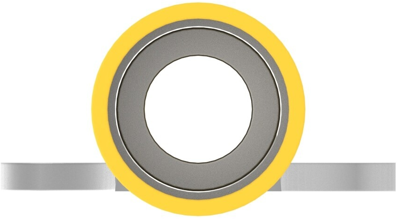

130205 AMP Cable Lugs Image 3

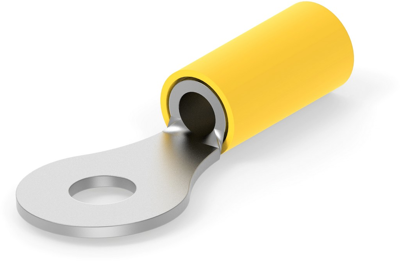

130205 AMP Cable Lugs Image 4
Image may differ
Unit Price (€ / pc.)
1.0710 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
5.35 € *
Price list
Quantity
Price per unit*
5 pcs.
1.0710 €
10 pcs.
0.9877 €
25 pcs.
0.9282 €
50 pcs.
0.8330 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable lug, 130205, AMP

Regular Wire, Closed Barrel, Straight, 300 V, M6, 5180 – 13100 CMA

Technical Data

  • Version: Ring cable lug
  • AWG cross-section AWG 12 to 10
  • Colour: yellow
  • Material: Copper, tin-plated
  • Cable cross-section 2.6 to 6.6 mm²
Technical specifications
Filter Property Value
Material copper, tin-plated
AWG cross-section AWG 12 to 10
Version ring cable lug
Isolated Yes
Cable cross-section 2.6-6.6 mm²
Colour yellow
Hole diameter 6 mm
Material Insulation nylon
max. operating temperature 105 °C
Thread size M6
Logistics
Property Value
Country of origin TW
Customs tariff number 85369095
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
