130118 | AMP

Insulated ring cable lug, 1.04-2.62 mm², AWG 16 to 14, 6.35 mm, M6, blue, 130118

Order No.: 39P3843
EAN: 4099889596458
MPN:
130118

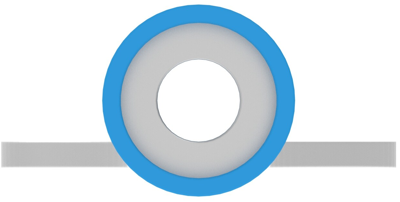

130118 AMP Cable Lugs Image 1

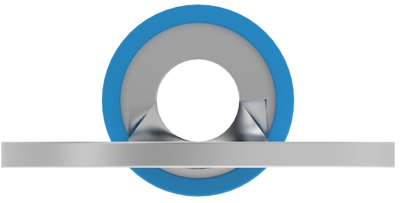

130118 AMP Cable Lugs Image 2

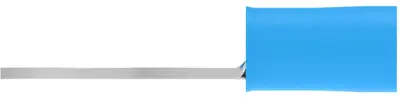

130118 AMP Cable Lugs Image 3

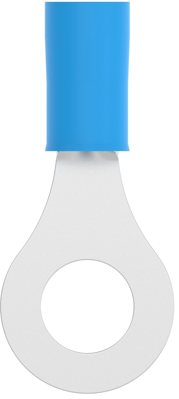

130118 AMP Cable Lugs Image 4

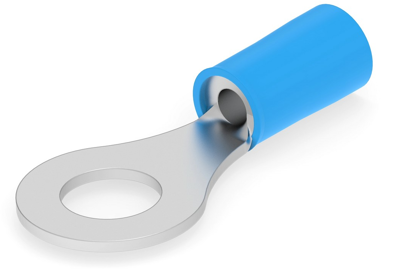

130118 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.9758 € *
Available in 5 Days: 1,464 pcs. - if ordered today
Total Price:
4.88 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9758 €
10 pcs.
0.9044 €
25 pcs.
0.8449 €
50 pcs.
0.7616 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable lug, 130118, AMP

Shape Description: RING-042, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Insulation Sleeve Color: Blue, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.04 – 2.62 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 6.35 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 150 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece

Technical specifications
Filter Property Value
Material copper, tin-plated
AWG cross-section AWG 16 to 14
Version ring cable lug
Isolated Yes
Cable cross-section 1.04-2.62 mm²
Colour blue
Hole diameter 6.35 mm
Material Insulation PA
max. operating temperature 150 °C
Thread size M6
Logistics
Property Value
Country of origin TW
Customs tariff number 85369095
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
