130102 | AMP

Insulated ring cable lug, 1.0-2.6 mm², AWG 16 to 14, 5.2 mm, M5, blue, 130102

Order No.: 39P4161
EAN: 4099889598827
MPN:
130102
Series: PLASTI-GRIP

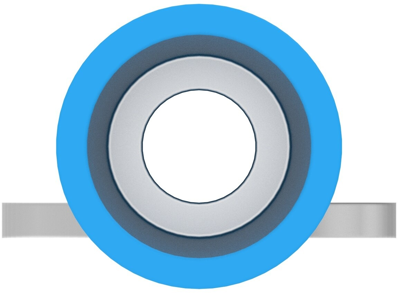

130102 AMP Cable Lugs Image 1

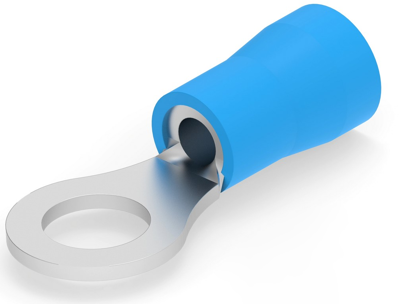

130102 AMP Cable Lugs Image 2

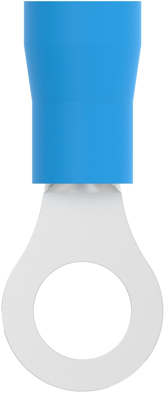

130102 AMP Cable Lugs Image 3

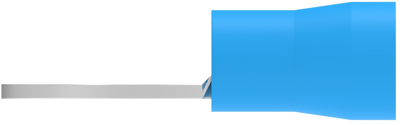

130102 AMP Cable Lugs Image 4

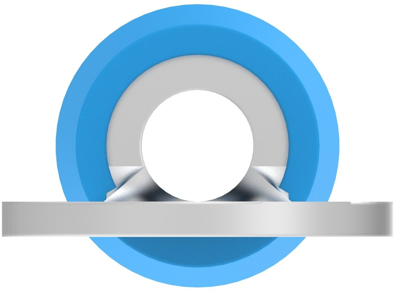

130102 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.2094 € *
Available: 11,805 pcs.
Available in 5 Days: 34,703 pcs. - if ordered today
Total Price:
2.09 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2094 €
50 pcs.
0.1940 €
100 pcs.
0.1809 €
250 pcs.
0.1642 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable lug, 130102, AMP

Regular Wire, Closed Barrel, Straight, 600 V, M5, 2050 – 5180 CMA

Technical Data

  • Version: Ring cable lug
  • AWG cross-section AWG 16 to 14
  • Colour: blue
  • Material: Copper, tin-plated
  • Cable cross-section 1.0 to 2.6 mm²
Technical specifications
Filter Property Value
Material Insulation vinyl
Material copper, tin-plated
max. operating temperature 90 °C
Version ring cable lug
Hole diameter 5.2 mm
Thread size M5
Isolated Yes
AWG cross-section AWG 16 to 14
Colour blue
Cable cross-section 1.0-2.6 mm²
Logistics
Property Value
Country of origin TW
Customs tariff number 85369095
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
