130054 | AMP

Insulated ring cable lug, 0.26-1.65 mm², AWG 22 to 16, 6.35 mm, M6, red, 130054

Order No.: 39P4069
EAN: 4099889597998
MPN:
130054
Series: PLASTI-GRIP

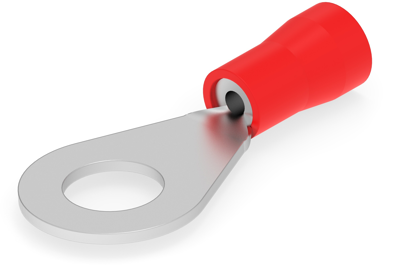

130054 AMP Cable Lugs Image 1

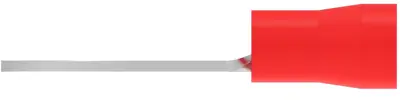

130054 AMP Cable Lugs Image 2

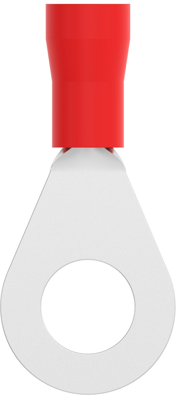

130054 AMP Cable Lugs Image 3

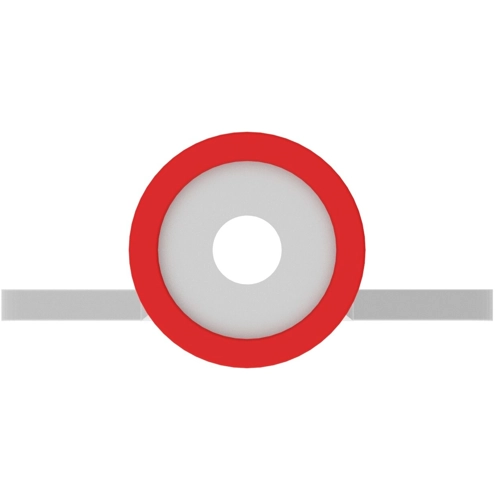

130054 AMP Cable Lugs Image 4
Image may differ
Unit Price (€ / pc.)
0.4641 € *
Available in 5 Days: 4,474 pcs. - if ordered today
Total Price:
0.46 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4641 €
10 pcs.
0.4046 €
50 pcs.
0.3570 €
100 pcs.
0.2975 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable lug, 130054, AMP

Shape Description: RING-043, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Insulation Sleeve Color: Red, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: .26 – 1.65 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 6.35 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece

Technical specifications
Filter Property Value
Version ring cable lug
Material tin
Isolated Yes
AWG cross-section AWG 22 to 16
Material Insulation PVC
Colour red
max. operating temperature 105 °C
Cable cross-section 0.26-1.65 mm²
Hole diameter 6.35 mm
Thread size M6
Logistics
Property Value
Country of origin TW
Customs tariff number 85369095
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
