1-696423-0 | AMP
Insulated ring cable lug, 1.04-2.62 mm², AWG 16 to 14, 13 mm, M12, natural, 1-696423-0
Unit Price (€ / pc.)
2.9988 € *
Available: 0 pcs.
Leadtime: 55 Weeks **
Total Price:
3.00 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9988 €
10 pcs.
2.7608 €
50 pcs.
2.4871 €
100 pcs.
2.2372 €
*incl. VAT plus shipping costs
**Subject to prior sale

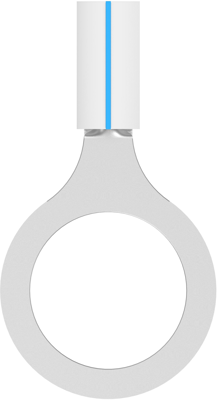

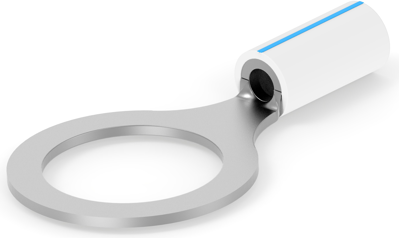

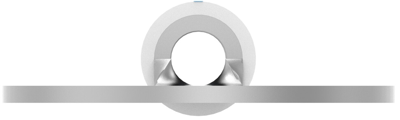

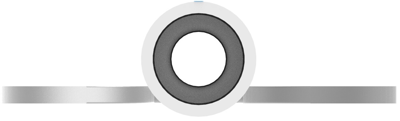

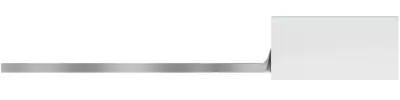

Ring cable lug, 1-696423-0, AMP
Ring terminal, Ring tongue, 16-14 AWG Wire size, 1.04-2.62 mm² Wire size, 2050-5180 CMA Wire size, Stud size M12/1/2.
Technical specifications
| Colour | natural | |
| Isolated | Yes | |
| AWG cross-section | AWG 16 to 14 | |
| Hole diameter | 13 mm | |
| Cable cross-section | 1.04-2.62 mm² | |
| Version | ring cable lug | |
| Material | copper, tin-plated | |
| max. operating temperature | 150 °C | |
| shrinkable tubing | No | |
| Material Insulation | PVDF | |
| Thread size | M12 |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
