1-321897-5 | AMP

Uninsulated ring cable lug, 0.326-1.31 mm², AWG 22 to 16, 5.2 mm, M5, green, 1-321897-5

Order No.: 71P1873
EAN: 4099891602840
MPN:
1-321897-5
Series: DIAMOND GRIP

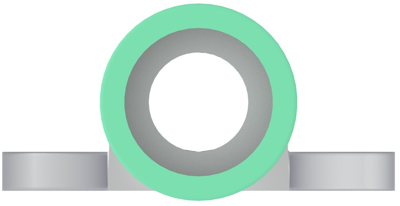

1-321897-5 AMP Cable Lugs Image 1

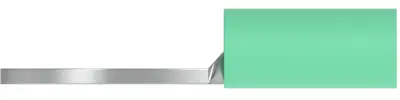

1-321897-5 AMP Cable Lugs Image 2

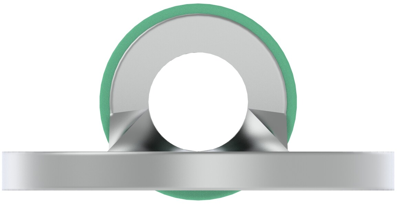

1-321897-5 AMP Cable Lugs Image 3

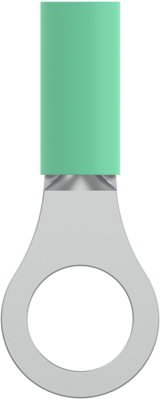

1-321897-5 AMP Cable Lugs Image 4

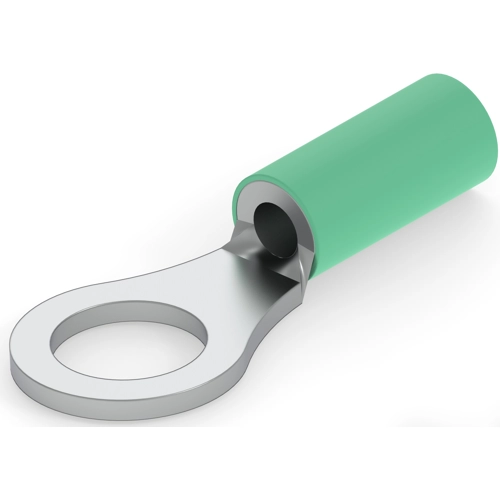

1-321897-5 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
4.6172 € *
Available in 5 Days: 656 pcs. - if ordered today
Total Price:
4.62 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6172 €
10 pcs.
4.2483 €
50 pcs.
3.8199 €
100 pcs.
3.4391 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring cable lug, 1-321897-5, AMP

Ring terminal & Spade terminal, Ring tongue, 22-16 AWG Wire size, 0.326-1.31 mm² Wire size, 509-3260 CMA Wire size.

Technical specifications
Colour green
Isolated No
AWG cross-section AWG 22 to 16
Hole diameter 5.2 mm
Cable cross-section 0.326-1.31 mm²
Version ring cable lug
max. operating temperature 649 °C
shrinkable tubing No
Thread size M5
Logistics
Country of origin US
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
