1-1377173-5 | AMP

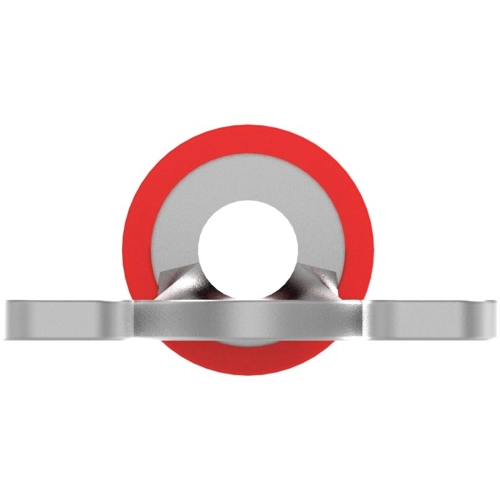

Insulated forked cable lug, 0.3-1.42 mm², AWG 22 to 16, M3.5, red
Order No.: 39P4153
EAN: 4099889598759
MPN:
1-1377173-5
Unit Price (€ / pc.)
0.6307 € *
Available: 0 pcs.
Available in 5 Days: 4,880 pcs.
Leadtime: 1 Week **
Total Price:
0.63 € *
Price list
Quantity
Price per unit*
200 pcs.
0.6307 €
700 pcs.
0.5831 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fork cable lug, 1-1377173-5, AMP
Shape Description: SPADE-021, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 600 V, Weight per Piece: .687 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 90 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Bag, Comment: Shipper quantity : 20 X QTY/Plastic box
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 22 to 16 | |
| Colour | red | |
| Thread size | M3.5 | |
| Material Insulation | vinyl | |
| Isolated | Yes | |
| Cable cross-section | 0.3-1.42 mm² | |
| Material | copper, tin-plated | |
| max. operating temperature | 90 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
