1-1377173-0 | AMP

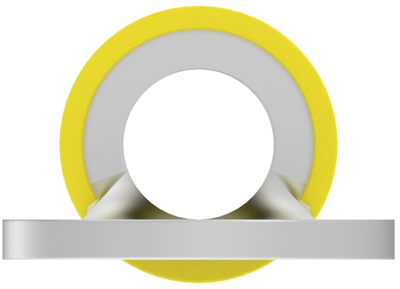

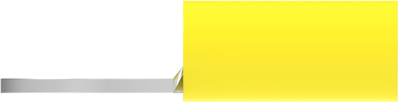

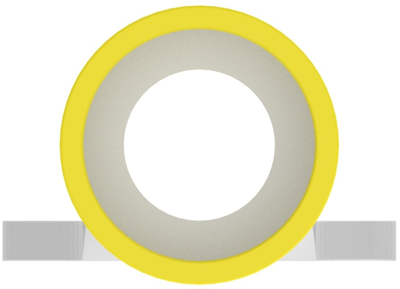

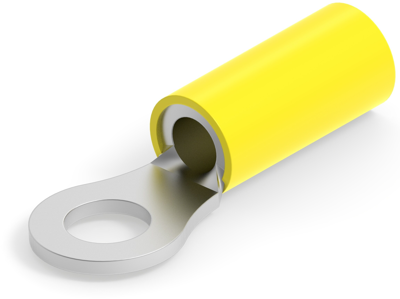

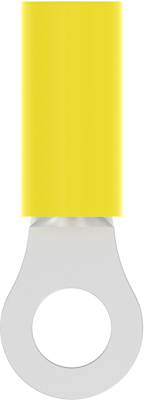

Insulated ring cable lug, 3.0-6.0 mm², AWG 12 to 10, 5.21 mm, M5, yellow, 1-1377173-0
Order No.: 39P4138
EAN: 4099889598612
MPN:
1-1377173-0
Unit Price (€ / pc.)
1.5827 € *
Available in 5 Days: 920 pcs. - if ordered today
Ring cable lug, 1-1377173-0, AMP
Shape Description: RING-043, Ring & Spade Stud Size: M5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 600 V, Weight per Piece: 0.395 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 5.21 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 50, Ring & Spade Packaging Method: Bag, Comment: Shipper quantity : 20 X QTY/Plastic box
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material Insulation | vinyl | |
| Isolated | Yes | |
| Version | ring cable lug | |
| max. operating temperature | 105 °C | |
| Colour | yellow | |
| Hole diameter | 5.21 mm | |
| AWG cross-section | AWG 12 to 10 | |
| Thread size | M5 | |
| Material | copper, tin-plated | |
| Cable cross-section | 3.0-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
