8-35115-1 | AMP

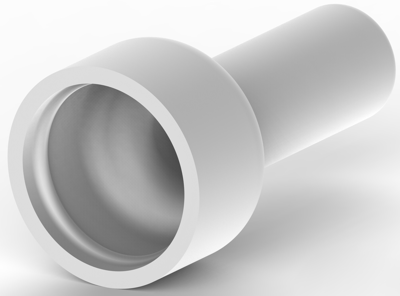

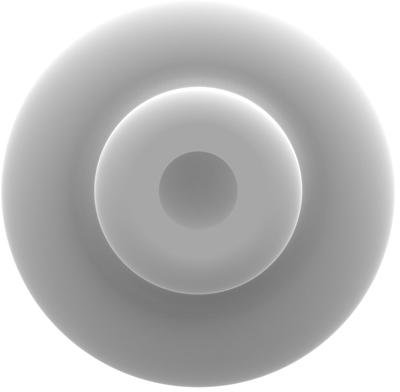

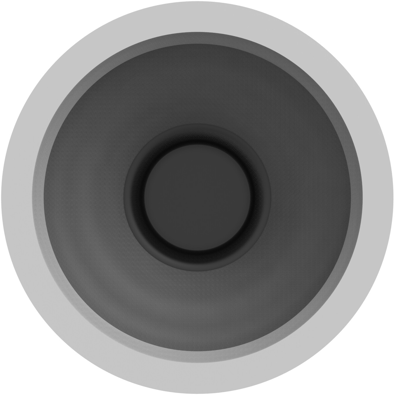

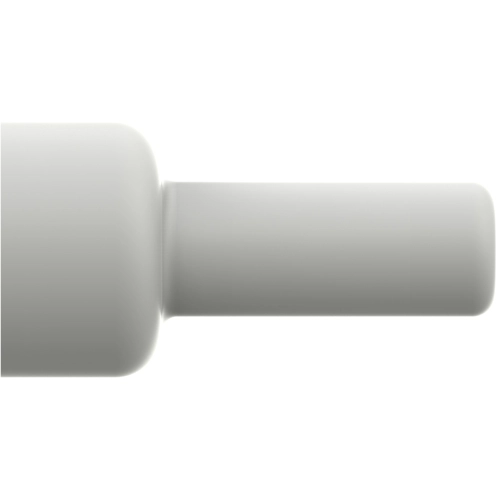

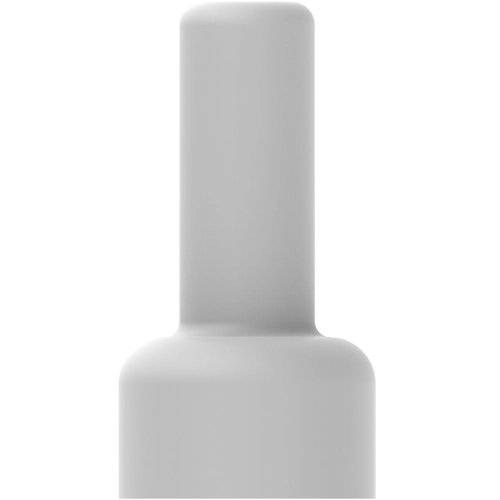

End connectorwith insulation, 0.3-2.0 mm², AWG 22 to 14, natural, 17.27 mm, 8-35115-1
Order No.: 38P3247
EAN: 4099889609714
MPN:
8-35115-1
Unit Price (€ / pc.)
1.4518 € *
Available in 5 Days: 44,303 pcs. - if ordered today
Total Price:
7.26 € *
Price list
Quantity
Price per unit*
5 pcs.
1.4518 €
10 pcs.
1.3447 €
25 pcs.
1.2495 €
50 pcs.
1.1305 €
*incl. VAT plus shipping costs
Subject to prior sale
Splice, 8-35115-1, AMP
Splice Product Type: Splice, Sealable: No, Splice Type: Closed End, Serrated: No, Splice Barrel Type: Closed Barrel, Number of Serrations: 4, Plating Material: Tin, Splice Material: Copper, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: Without, Wire Size: 22-14 AWG, Wire Size: 0.3-2 mm², Splice Wire Insulation Diameter (Max): 6.35 mm, Wire Size: 509-5180 CMA, Splice Overall Length: 17.27 mm, Insulation Requirement: Fully Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Marking: ECN, Government Qualified Splice: No, Packaging Quantity: 100, Splice Packaging Method: Loose Piece, Comment: ECN-300V, 105°C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | end connector | |
| Cable cross-section | 0.3-2.0 mm² | |
| AWG cross-section | AWG 22 to 14 | |
| Isolated | Yes | |
| Colour | natural | |
| Material | copper | |
| shrinkable tubing | No | |
| Length | 17.27 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
