8-321198-1 | AMP

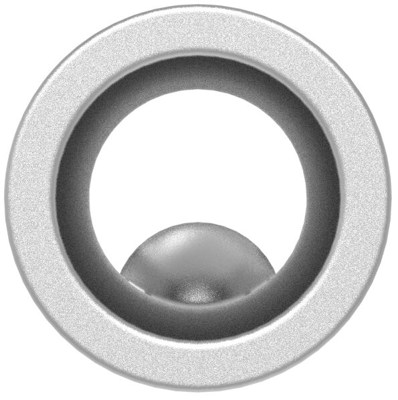

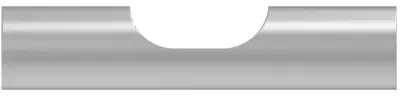

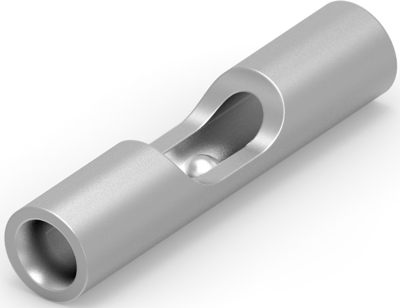

Butt connector, uninsulated, 0.12-0.4 mm², AWG 26 to 22, silver, 9.78 mm
Splice, 8-321198-1, AMP
Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: Yes, Splice Accessory Type: Splice, Plating Material: Tin, Splice Features: Strap, Splice Material: Copper, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: Without, Outside Diameter: 2.08 mm, Wire Size: 26-22 AWG, Wire Size: 0.12-0.4 mm², Barrel Inside Diameter: 0.79 mm, Wire Size: 202-810 CMA, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 100, Splice Packaging Method: Loose Piece, Comment: 26-22 Splice are 26-24 range in accordance with MIL-T-7928.
| Version | butt connector | |
| AWG cross-section | AWG 26 to 22 | |
| Colour | silver | |
| Isolated | No | |
| Length | 9.78 mm | |
| Cable cross-section | 0.12-0.4 mm² | |
| Material | copper | |
| shrinkable tubing | No |
| Country of origin | US |
| Customs tariff number | 85369010 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
