8-321026-1 | AMP

Butt connectorwith insulation, 0.12-0.4 mm², AWG 26 to 22, yellow, 15.75 mm, 8-321026-1

Order No.: 39P3921
EAN: 4099889610352
MPN:
8-321026-1
Series: PLASTI-GRIP

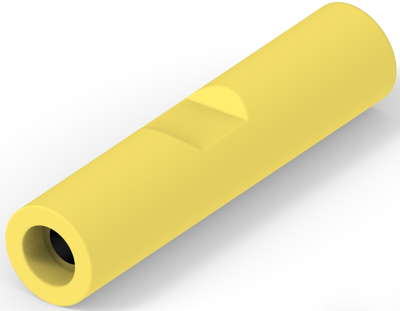

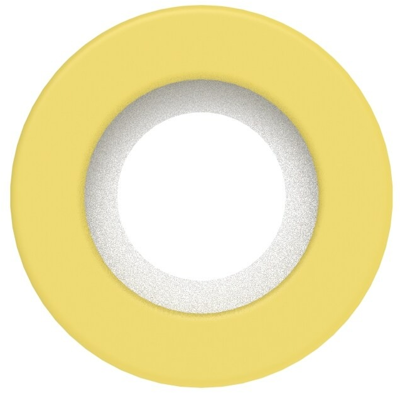

8-321026-1 AMP Butt splices Image 1
8-321026-1 AMP Butt splices Image 2
8-321026-1 AMP Butt splices Image 3
8-321026-1 AMP Butt splices Image 4
Image may differ
Unit Price (€ / pc.)
1.1305 € *
Available in 5 Days: 2,000 pcs. - if ordered today
Total Price:
1.13 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1305 €
10 pcs.
1.0234 €
50 pcs.
0.9163 €
100 pcs.
0.8330 €
*incl. VAT plus shipping costs
Subject to prior sale

Splice, 8-321026-1, AMP

Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: Yes, Splice Accessory Type: Splice, Plating Material: Tin, Splice Features: Standard, Splice Material: Copper, Splice Color: Yellow, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: With, Wire Size: 26-22 AWG, Wire Size: 0.12-0.4 mm², Splice Wire Insulation Diameter (Max): 2.03 mm, Wire Size: 202-810 CMA, Splice Overall Length: 15.75 mm, Insulation Requirement: Fully Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 100, Splice Packaging Method: Loose Piece, Comment: 26-22 Splice are 26-24 range in accordance with MIL-T-7928.

Technical specifications
Version butt connector
Cable cross-section 0.12-0.4 mm²
AWG cross-section AWG 26 to 22
Isolated Yes
Colour yellow
Material copper
shrinkable tubing No
Length 15.75 mm
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
