8-320559-5 | AMP

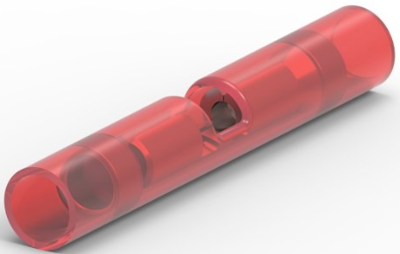

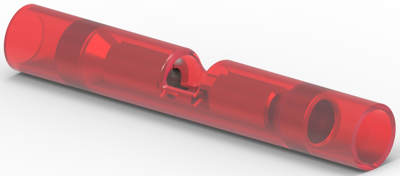

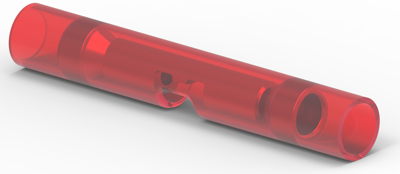

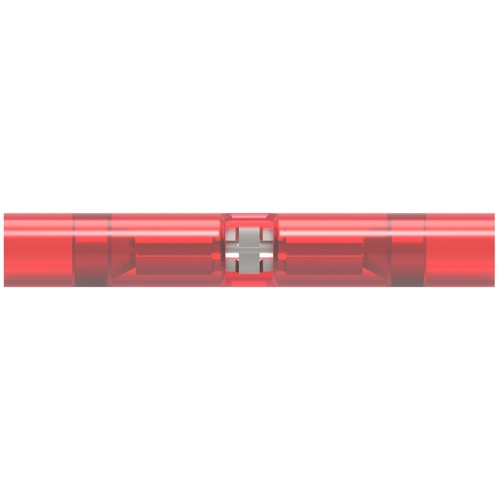

Butt connectorwith insulation, 0.3-1.42 mm², AWG 22 to 16, red, 32.13 mm, 8-320559-5
Order No.: 40P7721
EAN: 4099889611069
MPN:
8-320559-5
Unit Price (€ / pc.)
1.3923 € *
Available: 0 pcs.
Available in 5 Days: 700 pcs.
Leadtime: 55 Weeks **
Total Price:
1.39 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3923 €
10 pcs.
1.2733 €
50 pcs.
1.1424 €
100 pcs.
1.0353 €
*incl. VAT plus shipping costs
**Subject to prior sale
Splice, 8-320559-5, AMP
Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: Yes, Splice Accessory Type: Splice, Number of Serrations: 8, Plating Material: Tin, Splice Features: Standard, Splice Material: Copper, Splice Color: Red-Translucent, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: With, Wire Size: 22-16 AWG, Wire Size: 0.3-1.42 mm², Splice Wire Insulation Diameter (Max): 3.18 mm, Wire Size: 0.509-3.26 kcmil, Wire Size: 509-3.260 CMA, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 100, Splice Packaging Method: Loose Piece, Comment: Marking: Commercial 22-16- Military 22-18 in accordance with MIL-T-7928.
Technical specifications
| Version | butt connector | |
| Cable cross-section | 0.3-1.42 mm² | |
| AWG cross-section | AWG 22 to 16 | |
| Isolated | Yes | |
| Colour | red | |
| Material | copper | |
| shrinkable tubing | No | |
| Length | 32.13 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
