8-320559-2 | AMP

Butt connectorwith insulation, 0.3-1.42 mm², AWG 22 to 16, red, 32.13 mm, 8-320559-2

Order No.: 40P7722
EAN: 4099889611076
MPN:
8-320559-2

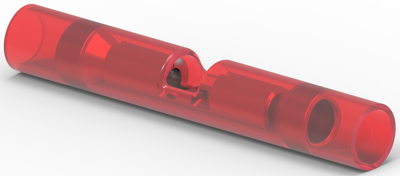

8-320559-2 AMP Butt splices Image 1

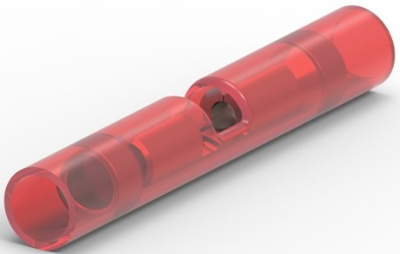

8-320559-2 AMP Butt splices Image 2

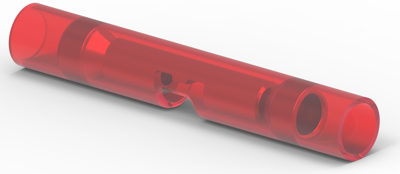

8-320559-2 AMP Butt splices Image 3
8-320559-2 AMP Butt splices Image 4
8-320559-2 AMP Butt splices Image 5
Image may differ
Unit Price (€ / pc.)
1.8326 € *
Available: 0 pcs.
Available in 5 Days: 800 pcs.
Leadtime: 43 Weeks **
Total Price:
1.83 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8326 €
10 pcs.
1.6660 €
50 pcs.
1.4994 €
100 pcs.
1.3566 €
*incl. VAT plus shipping costs
**Subject to prior sale

Splice, 8-320559-2, AMP

Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: Yes, Splice Accessory Type: Splice, Number of Serrations: 8, Plating Material: Tin, Splice Features: Standard, Splice Material: Copper, Splice Color: Red-Translucent, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: With, Wire Size: 22-16 AWG, Wire Size: 0.3-1.42 mm², Splice Wire Insulation Diameter (Max): 3.18 mm, Wire Size: 509-3.260 CMA, Wire Size: 0.509-3.26 kcmil, Insulation Requirement: Fully Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 50, Splice Packaging Method: Loose Piece, Comment: Marking: Commercial 22-16- Military 22-18 in accordance with MIL-T-7928.

Technical specifications
Version Stoßverbinder
Cable cross-section 0,3-1,42 mm²
AWG cross-section AWG 22 bis 16
Isolated Yes
Colour rot
Material Kupfer
shrinkable tubing No
Length 32.13 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
