62001-1 | AMP

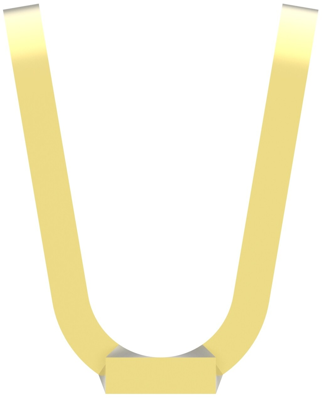

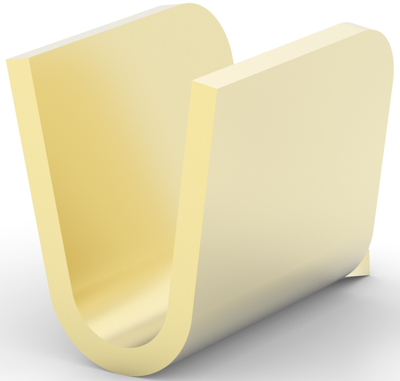

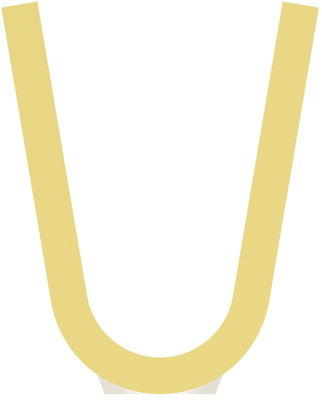

Crimp splice, uninsulated, 1.54-3.46 mm², AWG 15.5 to 12, yellow, 5.72 mm, 62001-1
Unit Price (€ / pc.)
0.0381 € *
Available in 5 Days: 60,000 pcs. - if ordered today
Splice, 62001-1, AMP
Splice Product Type: Splice, Sealable: No, Splice Type: Pigtail Splice, Serrated: Yes, Splice Barrel Type: Open Barrel, Strip Orientation: End Feed, Splice Capacity: 3, Number of Serrations: 7, Operating Voltage: 250 V, Plating Material: Unplated, Splice Material: Brass, Contact Plating Material: Unplated, Terminal & Splice Type: Splice, Crimp Width: 3.56 mm, Wire Insulation Support: Without, Wire Size: 15.5-12 AWG, Wire Size: 1.54-3.46 mm², Wire Size: 3000-7000 CMA, Splice Material Thickness: 0.51 mm, Splice Overall Length: 5.72 mm, Operating Temperature Range: -65-150 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 20000, Splice Packaging Method: Strip
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | crimp splice | |
| Cable cross-section | 1.54-3.46 mm² | |
| AWG cross-section | AWG 15.5 to 12 | |
| Isolated | No | |
| Colour | yellow | |
| Material | brass | |
| shrinkable tubing | No | |
| Length | 5.72 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
