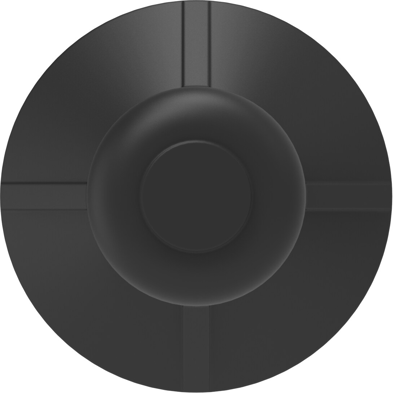

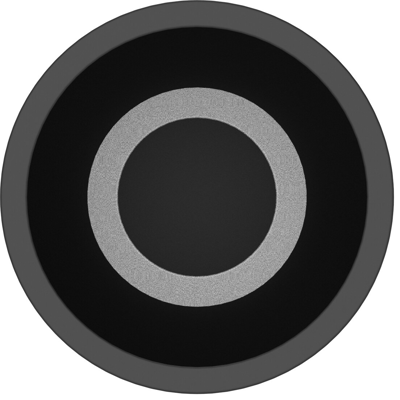

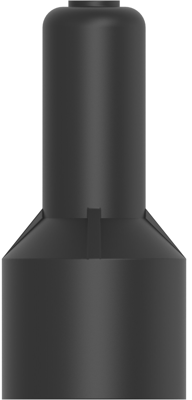

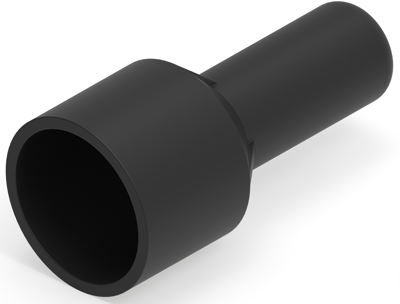

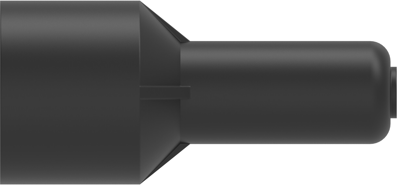

55929-1 | AMP
End connectorwith insulation, 0.3-6.0 mm², AWG 22 to 10, black, 24.89 mm
Order No.: 38P3241
EAN: 4099889609660
MPN:
55929-1
Unit Price (€ / pc.)
0.2963 € *
Available: 0 pcs.
Leadtime: 39 Weeks **
Splice, 55929-1, AMP
Splice Product Type: Splice, Sealable: No, Splice Type: Closed End, Serrated: No, Splice Accessory Type: Splice, Plating Material: Tin, Splice Material: Copper, Splice Color: Black, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: With, Wire Size: 22-10 AWG, Wire Size: 0.3-6 mm², Splice Wire Insulation Diameter (Max): 9.4 mm, Wire Size: 3248-13100 CMA, Wire Size: 3.248-13.1 kcmil, Insulation Requirement: Fully Insulated, Operating Temperature Range: 150 °C, Heavy Duty: No, Marking: EC, Government Qualified Splice: No, Packaging Quantity: 1000, Splice Packaging Method: Loose Piece, Comment: EC-600V Max. Building Wiring. 1000V Max. Fixtures and Signs, 150°C.
Technical specifications
| Version | end connector | |
| AWG cross-section | AWG 22 to 10 | |
| Colour | black | |
| Isolated | Yes | |
| Length | 24.89 mm | |
| Cable cross-section | 0.3-6.0 mm² | |
| Material | copper | |
| shrinkable tubing | No |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
