55843-1 | AMP

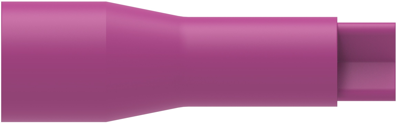

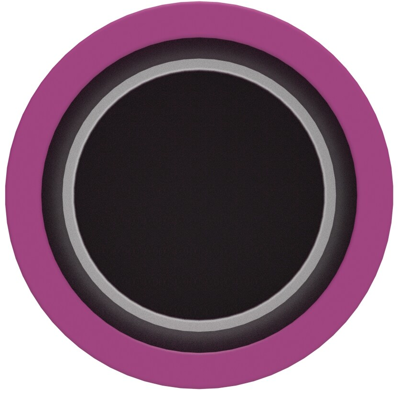

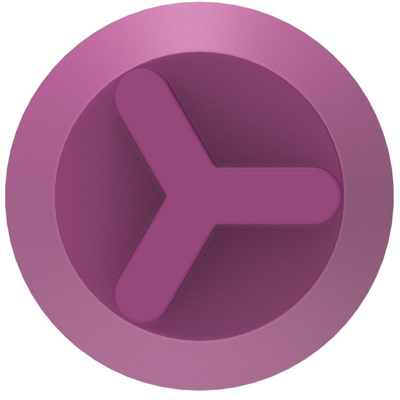

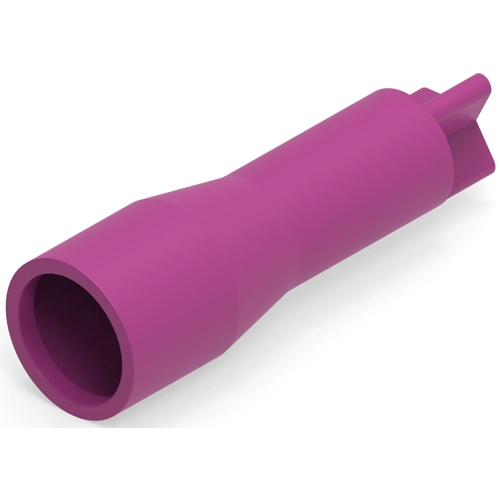

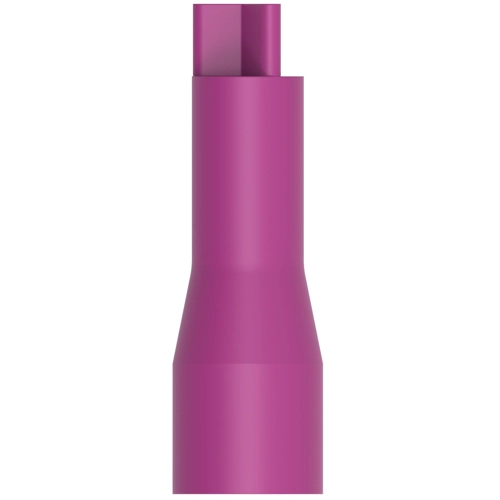

End connectorwith insulation, 0.3-2.0 mm², AWG 22 to 14, purple, 23.88 mm, 55843-1
Order No.: 38P3259
EAN: 4099889609820
MPN:
55843-1
Unit Price (€ / pc.)
0.3927 € *
Standard delivery time from the manufacturer is: 43 Weeks
Splice, 55843-1, AMP
Splice Product Type: Splice, Sealable: No, Splice Type: Closed End, Serrated: No, Splice Accessory Type: Splice, Plating Material: Unplated, Splice Material: Copper, Splice Color: Purple, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: With, Wire Size: 22-14 AWG, Wire Size: 0.3-2 mm², Splice Wire Insulation Diameter (Max): 5.97 mm, Wire Size: 509-5180 CMA, Wire Size: 0.509-5.18 kcmil, Insulation Requirement: Fully Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Marking: ECV, Government Qualified Splice: No, Packaging Quantity: 1000, Splice Packaging Method: Loose Piece, Comment: ECV-600V Max. Building Wiring. 1000V Max. Fixtures & Signs, 105°C UL, 90°C CSA.
Technical specifications
| Version | end connector | |
| Cable cross-section | 0.3-2.0 mm² | |
| AWG cross-section | AWG 22 to 14 | |
| Isolated | Yes | |
| Colour | purple | |
| Material | copper | |
| shrinkable tubing | No | |
| Length | 23.88 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
