53549-1 | AMP

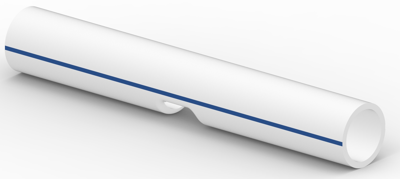

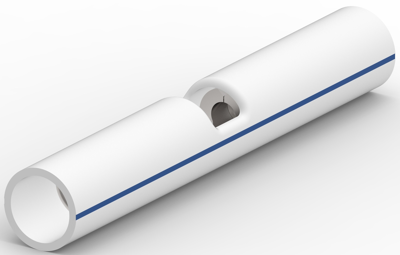

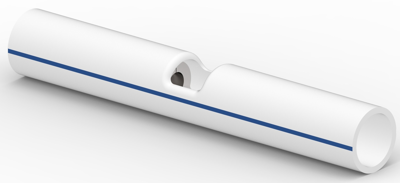

Butt connectorwith insulation, 1.25-2.0 mm², AWG 16 to 14, natural, 32.14 mm, 53549-1
Unit Price (€ / pc.)
2.1658 € *
Standard delivery time from the manufacturer is: 40 Weeks
Splice, 53549-1, AMP
Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: Yes, Splice Barrel Type: Closed Barrel, Insulation Support Sleeve Material: Copper, Splice Features: Serrated, Splice Material: Copper, Contact Plating Material: Tin-Lead, Terminal & Splice Type: Splice, Wire Insulation Support: With, Barrel Inside Diameter (Min): 2.16 mm, Wire Size: 16-14 AWG, Wire Size: 1.25-2 mm², Splice Wire Insulation Diameter (Max): 3.81 mm, Barrel Inside Diameter: 3.27 mm, Operating Temperature Range: 150 °C, Heavy Duty: No, Government Qualified Splice: Yes, Packaging Quantity: 1000, Splice Packaging Method: Loose Piece
Technical specifications
| Version | butt connector | |
| Cable cross-section | 1.25-2.0 mm² | |
| AWG cross-section | AWG 16 to 14 | |
| Isolated | Yes | |
| Colour | natural | |
| Material | copper | |
| shrinkable tubing | No | |
| Length | 32.14 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | No |
