36960 | AMP

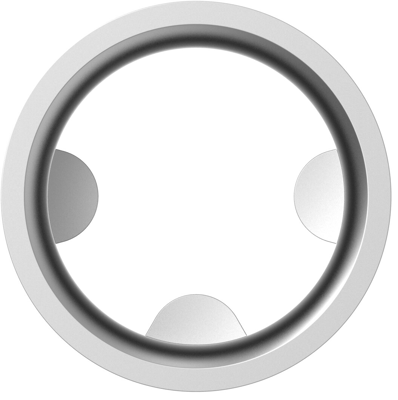

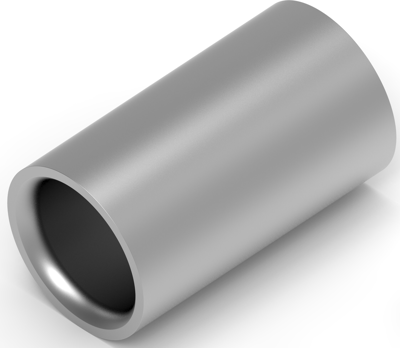

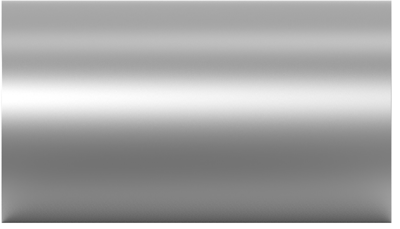

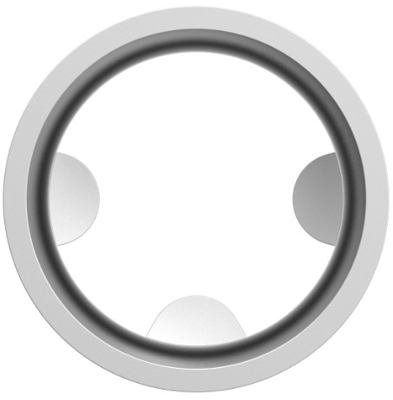

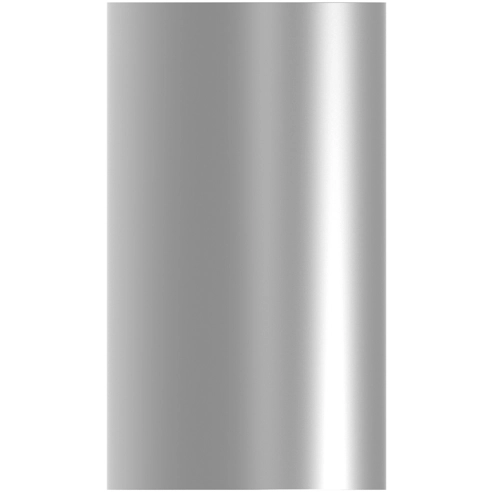

Butt connector, uninsulated, 125 mm², gray, 37.69 mm
Splice, 36960, AMP
Splice Product Type: Splice, Sealable: No, Splice Type: Butt Splice, Serrated: No, Splice Accessory Type: Splice, Plating Material: Tin, Splice Features: Sight Hole, Splice Material: Copper, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: Without, Outside Diameter: 22.07 mm, Wire Size: 0000 AWG, Wire Size: 125 mm², Barrel Inside Diameter: 16.13 mm, Wire Size: 190000-231100 CMA, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified Splice: No, Packaging Quantity: 50, Splice Packaging Method: Loose Piece, Military Category: No
| Version | butt connector | |
| Colour | gray | |
| Isolated | No | |
| Length | 37.69 mm | |
| Cable cross-section | 125 mm² | |
| Material | copper | |
| shrinkable tubing | No |
| Country of origin | TW |
| Customs tariff number | 85369010 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
