34304 | AMP

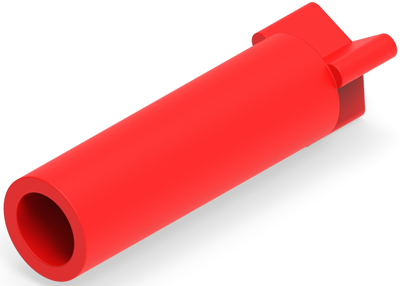

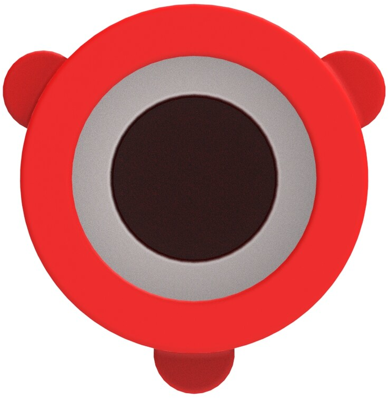

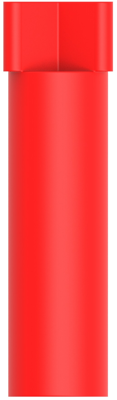

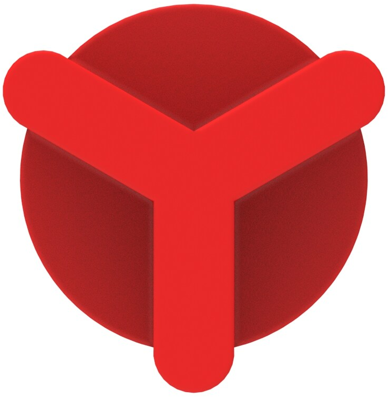

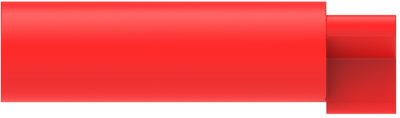

End connectorwith insulation, 0.3-2.0 mm², AWG 22 to 14, red, 19.05 mm, 34304
Order No.: 38P3257
EAN: 4099889609806
MPN:
34304
Unit Price (€ / pc.)
0.6545 € *
Available in 5 Days: 9,130 pcs. - if ordered today
Total Price:
3.27 € *
Price list
Quantity
Price per unit*
5 pcs.
0.6545 €
10 pcs.
0.6069 €
25 pcs.
0.5712 €
50 pcs.
0.5117 €
*incl. VAT plus shipping costs
Subject to prior sale
Splice, 34304, AMP
Splice Product Type: Splice, Sealable: No, Splice Type: Closed End, Serrated: No, Splice Accessory Type: Splice, Operating Voltage: 300 V, Plating Material: Tin, Splice Material: Copper, Splice Color: Red, Contact Plating Material: Tin, Terminal & Splice Type: Splice, Wire Insulation Support: With, Wire Size: 22-14 AWG, Wire Size: 0.3-2 mm², Splice Wire Insulation Diameter (Max): 3.96 mm, Wire Size: 509-5180 CMA, Wire Size: 0.509-5.18 kcmil, Insulation Requirement: Fully Insulated, Operating Temperature Range: 90 °C, Heavy Duty: No, Marking: VS, Government Qualified Splice: No, Packaging Quantity: 1000, Splice Packaging Method: Loose Piece, Comment: VS-300V, 90°- C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | end connector | |
| Cable cross-section | 0.3-2.0 mm² | |
| AWG cross-section | AWG 22 to 14 | |
| Isolated | Yes | |
| Colour | red | |
| Material | copper | |
| shrinkable tubing | No | |
| Length | 19.05 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SI |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
